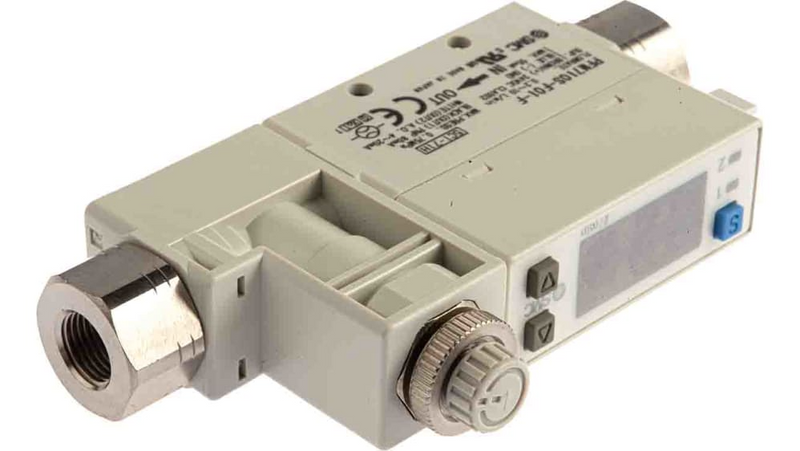

SMC PFM710SF01F (PFM710S-F01-F) - 2-Colour Display Digital Flow Switch, G1/8 Port, 0.2 to 10 L/min

SMC PFM710SF01F 2-Colour Display Digital Flow Switch — 0.2 to 10 L/min range on a G1/8 port with 1 PNP output plus a 4 to 20 mA analog output. 2-colour display digital flow switch with integrated display for air, N2, Ar and CO2, 0.2 to 10 (5) L/min rated flow range, with flow adjustment valve, G1/8 bore size, straight piping entry, 1 PNP output plus analog 4 to 20 mA, with lead wire with connector (2 m).

MPN: PFM710S-F01-F · SKU: PFM710SF01F

PFM710S-F01-F Applications

The SMC PFM710SF01F is used where a low gas flow must be both trended and alarmed, thanks to its combined PNP switch and 4 to 20 mA analog output. The 0.2 to 10 L/min range on a G1/8 port suits it to monitoring purge gas on analytical instruments, verifying small blow-off nozzles, and controlling shielding gas on welding and laser heads. The integrated flow adjustment valve lets the flow be trimmed at the switch without extra plumbing, the 2-colour display shows the reading against the set point, and the grease-free body suits clean gas duty.

PFM710S-F01-F Specifications
