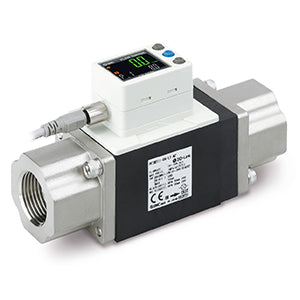

SMC PF3W720F04ETNM (PF3W720-F04-ET-NM) - Digital Flow Switch, 2 to 16 l/min water, 3-colour digital flow switch

SMC PF3W720F04ETNM Digital Flow Switch — For water, 2 to 16 l/min, with temperature sensor and analogue output. PF3W720 3-colour display digital flow switch for water (and ethylene glycol aqueous solution, viscosity 3 mPa·s or less). Rated flow range 2 to 16 l/min; display flow range 1.7 to 22 l/min. F04 = G 1/2 port. Output type E = PNP + analogue 1 to 5 V (OUT1 PNP, OUT2 analogue voltage). T = with integrated temperature sensor (fluid temp range 0 to 90°C, display -10 to 110°C). N = without lead wire, with M8 connector. M = fixed SI unit (l/min, l, °C). Karman-vortex detection. Display accuracy ±3% F.S., repeatability ±2% F.S. Operating pressure 0 to 1 MPa, proof pressure 1.5 MPa. Power 12 to 24 VDC. IP65. CE, UL(CSA), RoHS. Wetted parts PPS, SUS304, FKM, SCS13..

MPN: PF3W720-F04-ET-NM · SKU: PF3W720F04ETNM

PF3W720-F04-ET-NM Applications

The PF3W720-F04-ET-NM monitors both flow and temperature of water or ethylene glycol coolant in a single compact unit, ideal for chiller and process-cooling circuits on welding equipment, machine-tool spindles, moulds and laser sources. Its integrated temperature sensor and PNP switch plus 1 to 5 V analogue output let a PLC track cooling performance and trigger alarms on low flow or overheating. The rotatable 3-colour display improves visibility, and Karman-vortex sensing needs no moving parts. Requires 8 cm straight inlet piping for rated accuracy.

PF3W720-F04-ET-NM Specifications
