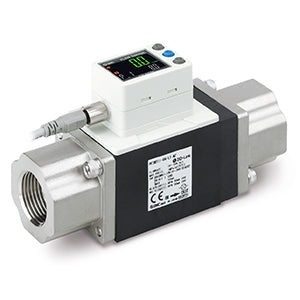

SMC PF3W704SF03BNM (PF3W704-SF03-B-N-M) - Digital Flow Switch, 0.5 to 4 L/min, G3/8 Port

SMC PF3W704SF03BNM Digital Flow Switch — Water, 0.5 to 4 L/min, G3/8 with flow adjustment valve. PF3W7 Series 3-color display digital flow switch for water. Model PF3W704 rated flow range 0.5 to 4 L/min. Applicable fluid: water and ethylene glycol aqueous solution (viscosity 3 mPa.s or less). Port G3/8 with flow adjustment valve (SF03). Output B: OUT1 PNP / OUT2 PNP, no temperature sensor. Lead wire N: without lead wire with M8 connector. Unit M: L/min, L, deg C. Main 4-digit 7-segment red/green display, sub 6-digit white display. Fluid temperature range 0 to 100 C. Power supply 12 to 24 VDC +/-10%.

MPN: PF3W704-SF03-B-N-M · SKU: PF3W704SF03BNM

PF3W704-SF03-B-N-M Applications

The PF3W704-SF03-B-N-M monitors water or ethylene glycol coolant from 0.5 to 4 L/min through a G3/8 port with an integrated flow adjustment valve for precise setpoint tuning. Twin PNP switch outputs signal high and low flow alarms to a PLC, and the 3-color red/green display gives instant status. Supplied without lead wire (M8 connector) for flexible cabling. Ideal for cooling water verification on welders, molds, spindles and laser sources where reliable low-flow detection protects equipment from overheating.

PF3W704-SF03-B-N-M Specifications
