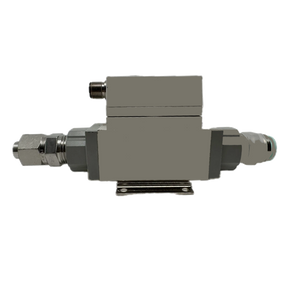

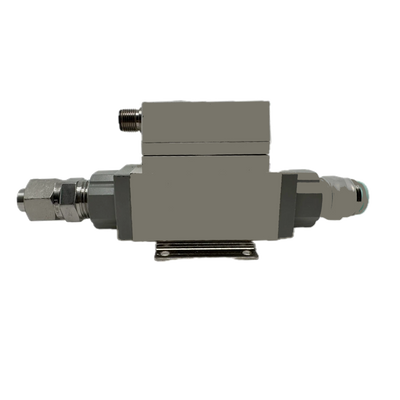

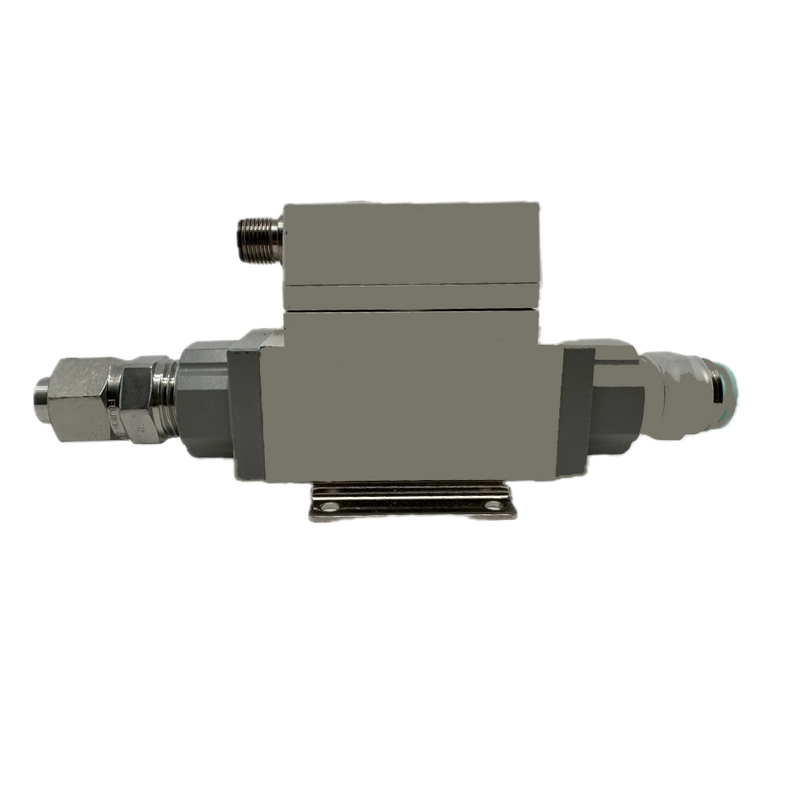

SMC PF2MC7501F04LR (PF2MC7501-F04-L-R) - IO-Link Compatible Digital Flow Switch, G1/2 Port, 5 to 500 L/min
SMC PF2MC7501F04LR IO-Link Compatible Digital Flow Switch — IO-Link switch output with a 5 to 500 L/min range and mounting bracket. 3-colour 3-screen IO-Link compatible display digital flow switch for dry air and N2, integrated display, 5 to 500 L/min rated flow range, G thread, 1/2 port size, OUT1 IO-Link/switch output (N/P), with lead wire and M8 connector (3 m), with unit switching function, with bracket.
MPN: PF2MC7501-F04-L-R · SKU: PF2MC7501F04LR
PF2MC7501-F04-L-R Applications
The SMC PF2MC7501F04LR is used in factory automation networks that monitor compressed air or nitrogen consumption at the machine. Its IO-Link output lets a PLC read live flow and change set points remotely, so it is suited for air leak detection and energy monitoring, blow-off and purge verification, and centralised utility metering across a line. The 3-colour 3-screen display shows flow against the set point at a glance, the 100:1 flow ratio covers 5 to 500 L/min from one device, and the grease-free construction suits clean and dry gas duty.
PF2MC7501-F04-L-R Specifications
| Brand | SMC | Manufacturer Part No. | PF2MC7501-F04-L-R |
| Product Type | IO-Link Compatible Digital Flow Switch | Series | PF2MC7 |
| Fluid | Dry air, N2 | Type | 7 - Integrated Display |
| Rated Flow Range | 501 - 5 to 500 L/min | Thread Type | F - G |
| Port Size | 04 - 1/2 | Output Specifications | L - OUT1: IO-Link/Switch Output (N/P); OUT2: - |
| Option 1 | With Lead Wire and M8 Connector (3 m) | Remote Sensor Unit | With Unit Switching Function |
| Option 2 | R - With Bracket | Calibration Certificate | None |
| Display | 3-colour / 3-screen |
