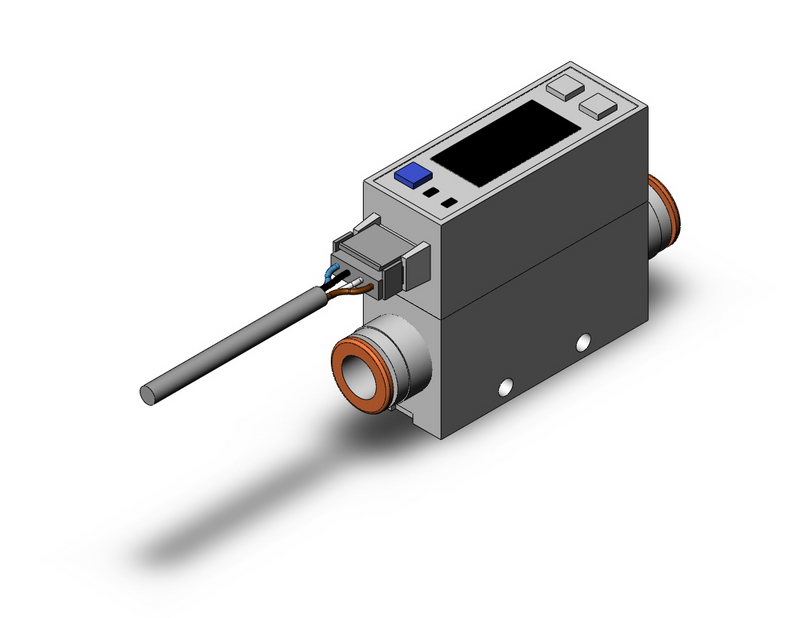

SMC PF2M711C8FA (PF2M711-C8-F-A) - Digital Flow Switch, 0.5 to 50 L/min range, ø8 mm port

SMC PF2M711C8FA Digital Flow Switch — 2-colour display, up to 50 L/min, ø8 push-in port, analogue output. PF2M7 series 2-colour display digital flow switch for air, nitrogen, CO2 and argon. Flow range up to 50 L/min, ø8 mm push-in (C8) fittings, F port orientation, with analogue output (A). IP40, LCD 2-colour (red/green) display. Accuracy +/-3% F.S., repeatability +/-1% F.S.

MPN: PF2M711-C8-F-A · SKU: PF2M711C8FA

PF2M711-C8-F-A Applications

The PF2M711-C8-F-A is a PF2M7-series 2-colour digital flow switch measuring compressed air, nitrogen, CO2 or argon up to 50 L/min through ø8 mm push-in ports, with an analogue output option. The red/green LCD shows in-range versus out-of-range flow instantly while the analogue signal feeds a PLC or recorder for trending and control. Compact and grease-free, it suits air-blow, purge, cooling and leak-detection lines where confirming larger gas flows protects process quality and flags clogging or leaks.

PF2M711-C8-F-A Specifications
