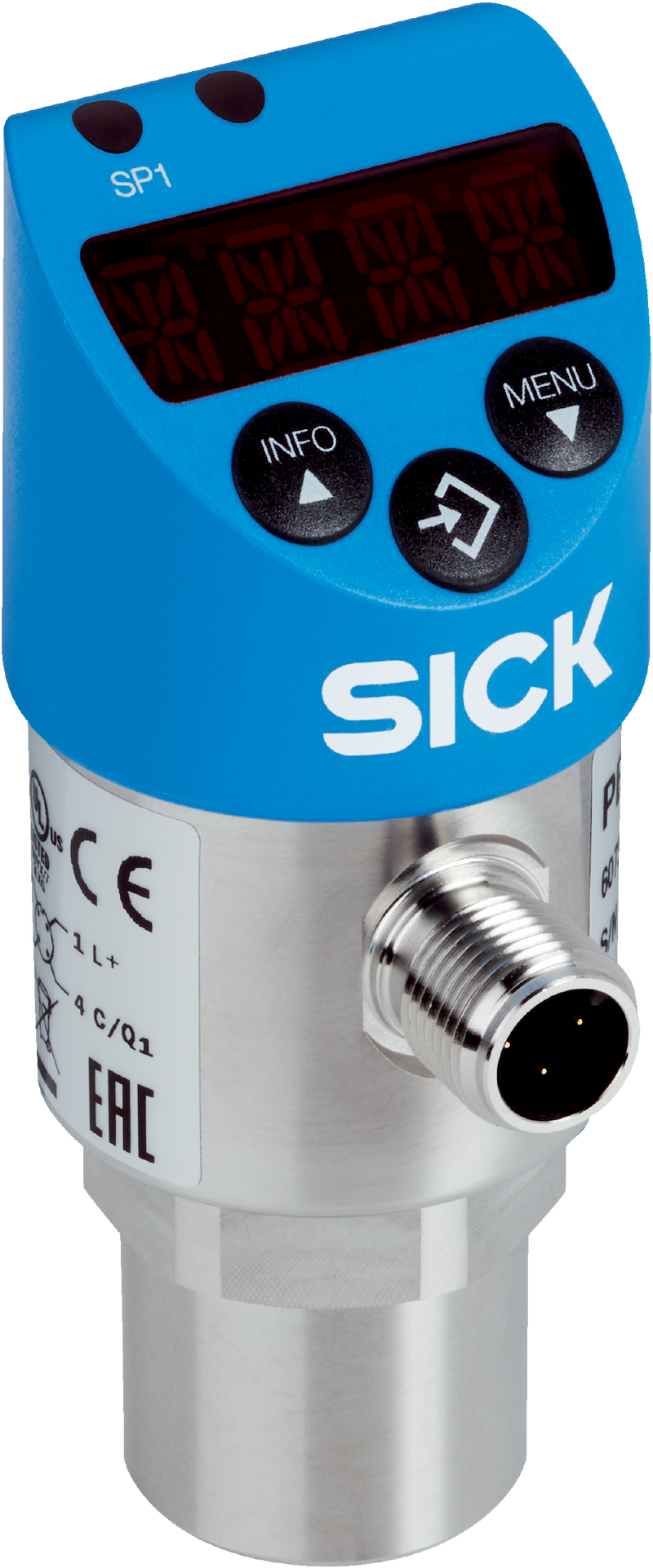

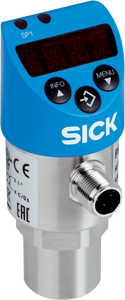

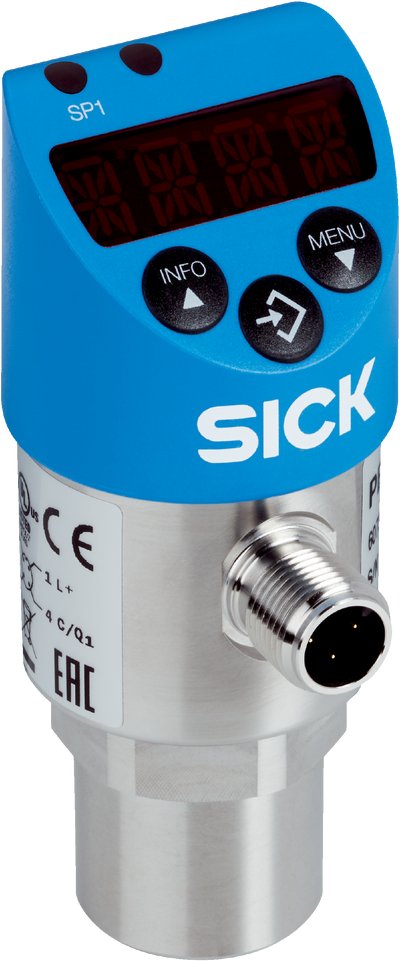

SICK PBS2-CB1X6SG2SS0LMA0Z - PBS plus Electronic Pressure Sensor, -1...0.6 bar, 2x PNP/NPN + IO-Link
SICK PBS2-CB1X6SG2SS0LMA0Z PBS plus Electronic Pressure Sensor — -1...0.6 bar compound measuring range. compound pressure type, G1/4A process connection, 316L stainless steel wetted parts, IO-Link V1.1 with 2x PNP/NPN switching outputs, 14-segment LED display, M12 4-pin connector, 15-35 V DC, IP67, accuracy <= +/-0.5% of span.
MPN / SKU: PBS2-CB1X6SG2SS0LMA0Z
The SICK PBS2-CB1X6SG2SS0LMA0Z is used in machine building, hydraulics, pneumatics and process automation where a compound (-1 to 0.6 bar) pressure needs to be monitored. It suits vacuum-to-low-pressure tasks such as pump and blower monitoring, clamping and gripping systems, and leak or filter supervision. With IO-Link, two configurable PNP/NPN switching outputs and an on-board LED display, it delivers both digital process data and standalone switching for flexible integration.
| Brand | SICK | Product Type | PBS plus Electronic Pressure Sensor |
| Series | PBS plus (PBS2) | Pressure Type | Compound pressure |
| Measuring Range | -1 bar ... 0.6 bar (-14.5 psi ... 8.7 psi) | Medium | Liquid, gaseous |
| Output Signal | IO-Link V1.1 + 2x PNP/NPN (NO/NC configurable) | Communication Interface | IO-Link V1.1 |
| Display | 14-segment LED, red, 4-digit, rotatable | Process Connection | G 1/4 A (ISO 1179-2) |
| Wetted Parts | 316L stainless steel | Electrical Connection | M12 round connector, 4-pin |
| Supply Voltage | 15 V DC ... 35 V DC | Total Current Consumption | max. 600 mA |
| Accuracy | <= +/-0.5 % of span | Response Time | <= 5 ms |
| Process Temperature | -20 C ... +85 C | Ambient Temperature | -20 C ... +80 C |
| Enclosure Rating | IP67 | Protection Class | III |
| Weight | approx. 220 g | Certificates | CE, UKCA, cULus, IO-Link, RoHS |
Compatible equivalents: IFM PN2 series, Festo SPAW series, SMC ISE30A series, Turck PS+ series, Baumer PP20H
