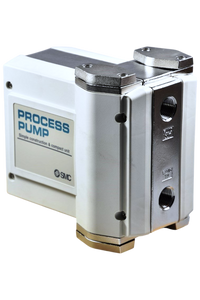

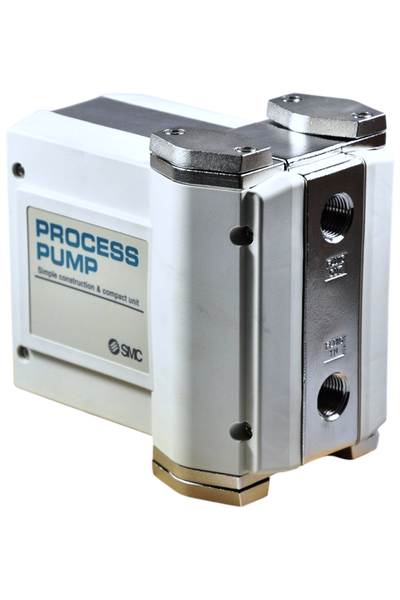

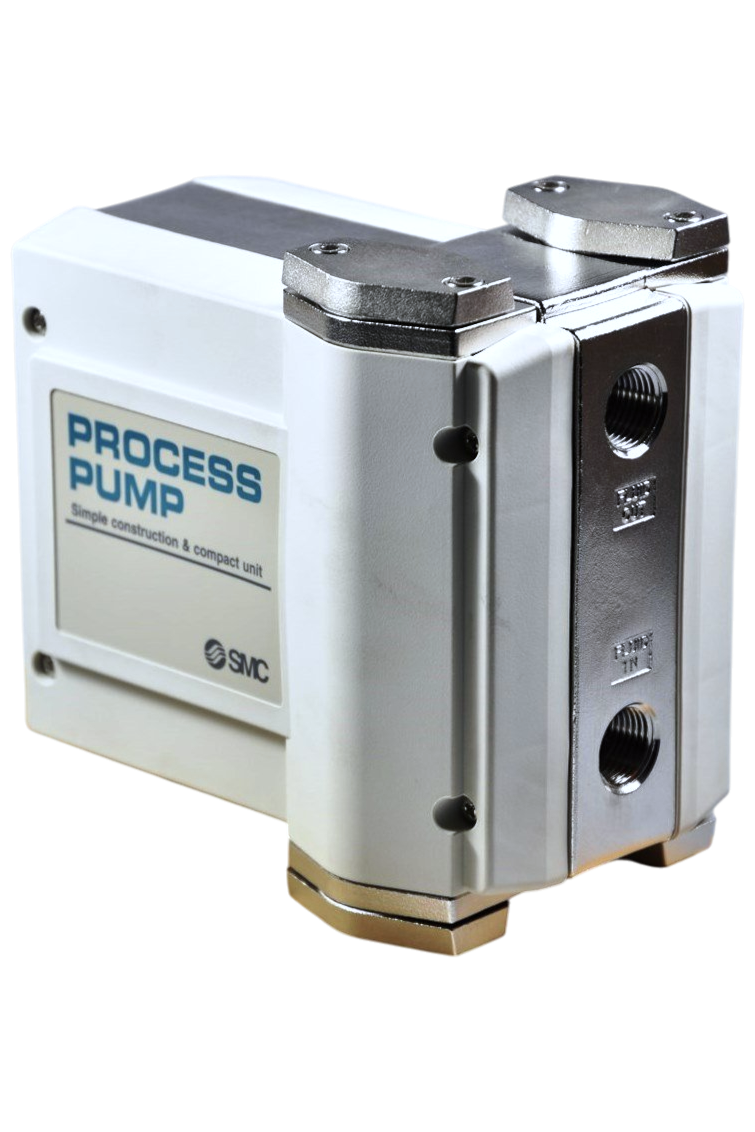

SMC PA521006 (PA5210-06) - Process Pump, 1/2 Body Size, Rc Thread
SMC PA521006 Process Pump — largest 3/4" bore with SCS14 stainless steel body, PTFE diaphragm and Rc thread. Automatically operated (internal switching) diaphragm process pump, 1/2 standard body size, SCS14 stainless steel wetted body, PTFE diaphragm, Rc thread, 3/4" bore size.
MPN: PA5210-06 · SKU: PA521006
PA5210-06 Applications
The SMC PA521006 is used where an aggressive fluid must be moved at the highest flow in the PA range, combining a 1/2 body with the largest 3/4 inch bore. Its SCS14 stainless steel wetted body and PTFE diaphragm suit it to acids, solvents, deionised water and hot chemistry, so it is used for bulk chemical transfer, filter and scrubber feed, and plating tank circulation. The Rc tapered thread ports suit installations plumbed with sealed tapered fittings, and running on compressed air alone keeps electrical equipment out of the wet area.
PA5210-06 Specifications
| Brand | SMC | Manufacturer Part No. | PA5210-06 |
| Product Type | Process Pump | Series | PA5000 |
| Body Size | 5 - 1/2 Standard | Material of Body Wetted Areas | 2 - SCS14 (Stainless Steel) |
| Diaphragm Material | 1 - PTFE | Actuation | 0 - Automatically Operated (Internal Switching Type) |
| Thread Type | Rc | Bore Size | 06 - 3/4" |
| Option | None | Made to Order | Standard |
