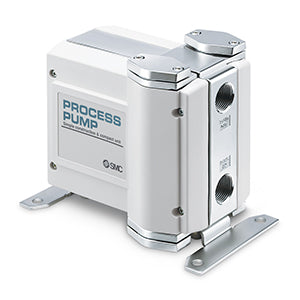

SMC PA5110F04 (PA5110-F04) - Process Pump, 1/2 Body Size, G Thread
SMC PA5110F04 Process Pump — 1/2 body size with ADC12 aluminium body, PTFE diaphragm and G thread. Automatically operated (internal switching) diaphragm process pump, 1/2 standard body size, ADC12 aluminium wetted body, PTFE diaphragm, G thread, 1/2" bore size.
MPN: PA5110-F04 · SKU: PA5110F04
PA5110-F04 Applications
The SMC PA5110F04 is used in paint, coating and coolant systems that need a higher flow than the 3/8 body pumps can deliver. Its 1/2 body with an ADC12 aluminium wetted section and a PTFE diaphragm suits it to solvents and paints that would swell a rubber diaphragm while the fluid itself does not attack aluminium, making it a good fit for paint circulation loops, solvent recovery and bulk coolant transfer. It is air operated with internal switching, so it self-primes, tolerates running dry, and stalls safely when the discharge is closed.
PA5110-F04 Specifications
| Brand | SMC | Manufacturer Part No. | PA5110-F04 |
| Product Type | Process Pump | Series | PA5000 |
| Body Size | 5 - 1/2 Standard | Material of Body Wetted Areas | 1 - ADC12 (Aluminium) |
| Diaphragm Material | 1 - PTFE | Actuation | 0 - Automatically Operated (Internal Switching Type) |
| Thread Type | F - G | Bore Size | 04 - 1/2" |
| Option | None | Made to Order | Standard |
