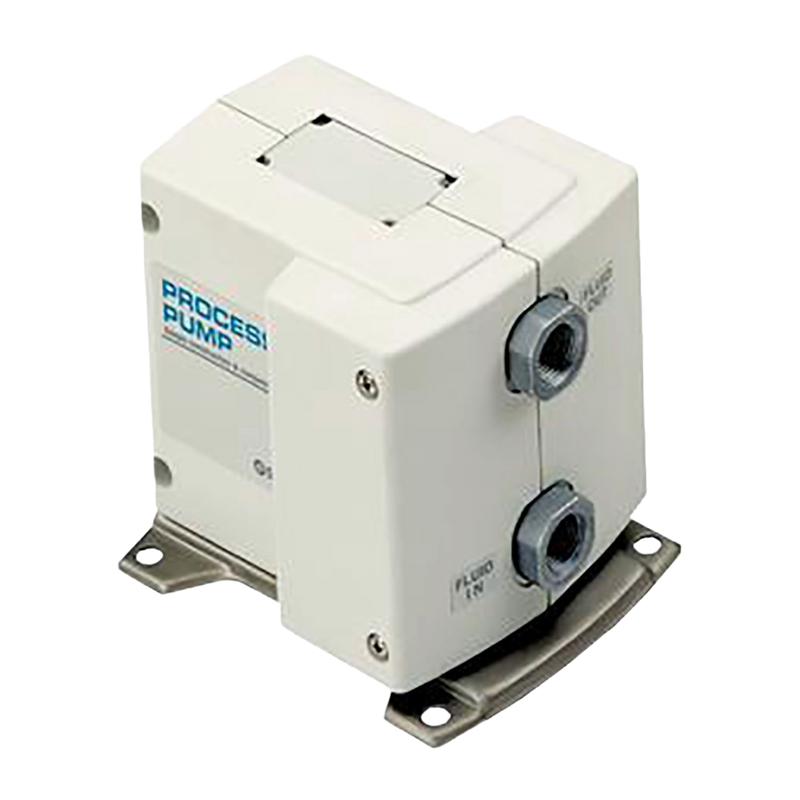

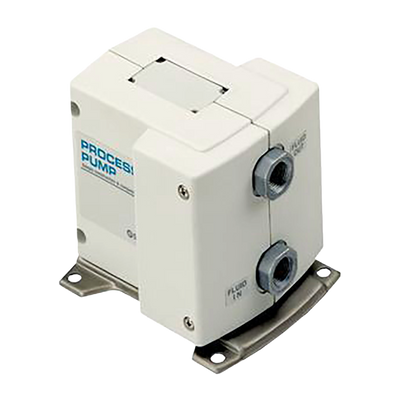

SMC PA3210F03 (PA3210-F03) - Process Pump, 3/8 Body Size, G Thread
SMC PA3210F03 Process Pump — SCS14 stainless steel body with a PTFE diaphragm and G thread. Automatically operated (internal switching) diaphragm process pump, 3/8 standard body size, SCS14 stainless steel wetted body, PTFE diaphragm, G thread, 3/8" bore size.
MPN: PA3210-F03 · SKU: PA3210F03
PA3210-F03 Applications
The SMC PA3210F03 is used in semiconductor, pharmaceutical and chemical processing lines where the pumped fluid attacks aluminium or nitrile. Its SCS14 stainless steel wetted body and PTFE diaphragm suit it to acids, solvents, deionised water and aggressive cleaning chemistry, so it is a common choice for etchant circulation, filter feed duty and chemical drum transfer. Running on compressed air alone, it needs no motor or controller in the wetted area, and the G parallel thread ports connect directly to BSPP fittings common on European and Middle East installations.
PA3210-F03 Specifications
| Brand | SMC | Manufacturer Part No. | PA3210-F03 |
| Product Type | Process Pump | Series | PA3000 |
| Body Size | 3 - 3/8 Standard | Material of Body Wetted Areas | 2 - SCS14 (Stainless Steel) |
| Diaphragm Material | 1 - PTFE | Actuation | 0 - Automatically Operated (Internal Switching Type) |
| Thread Type | F - G | Bore Size | 03 - 3/8" |
| Option | None | Made to Order | Standard |
