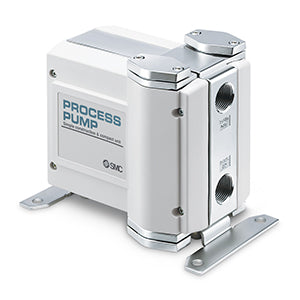

SMC PA3120F03 (PA3120-F03) - Process Pump, 1200 L/h flow, Rc3/8 port

SMC PA3120F03 Process Pump — Air-operated double-acting diaphragm, F03 port. PA3000 series automatically operated, double-acting air-operated diaphragm process pump. Aluminium (ADC12) body, NBR diaphragms. Max flow 1200 L/h, max operating pressure 1.05 MPa. F03 (Rc3/8) port connections.

MPN: PA3120-F03 · SKU: PA3120F03

PA3120-F03 Applications

The PA3120-F03 is a PA3000-series air-operated double-acting diaphragm process pump for transfer and recovery of a wide range of fluids. Driven by compressed air with no electric power at the pump, it suits transferring water, chemicals, coolants and drainage in industrial fluid-process lines. The aluminium body with NBR diaphragms delivers up to 1200 L/h, and the individually replaceable diaphragm and check valves simplify maintenance. Its self-priming, seal-less action handles fluids containing particulates without leakage.

PA3120-F03 Specifications
