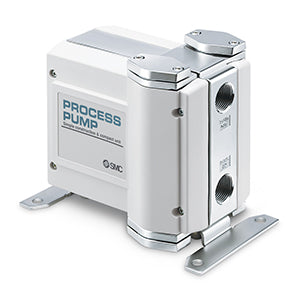

SMC PA312003 (PA3120-03) - Process Pump, 3/8 Body Size, Rc Thread
SMC PA312003 Process Pump — ADC12 aluminium body with an NBR diaphragm and Rc thread. Automatically operated (internal switching) diaphragm process pump, 3/8 standard body size, ADC12 aluminium wetted body, NBR diaphragm, Rc thread, 3/8" bore size.
MPN: PA3120-03 · SKU: PA312003
PA3120-03 Applications
The SMC PA312003 is used in coating, plating and general chemical transfer lines where a compressed-air supply is available but electrical pumps are unwanted. Its ADC12 aluminium body and NBR diaphragm suit it to oils, coolants and general-purpose fluids compatible with nitrile, making it a good fit for machine tool coolant recovery, paint circulation and waste liquid transfer. Because it is automatically operated with internal air switching, it needs no external valve or controller and it can run dry and stall safely against a closed discharge.
PA3120-03 Specifications
| Brand | SMC | Manufacturer Part No. | PA3120-03 |
| Product Type | Process Pump | Series | PA3000 |
| Body Size | 3 - 3/8 Standard | Material of Body Wetted Areas | 1 - ADC12 (Aluminium) |
| Diaphragm Material | 2 - NBR | Actuation | 0 - Automatically Operated (Internal Switching Type) |
| Thread Type | Rc | Bore Size | 03 - 3/8" |
| Option | None | Made to Order | Standard |
