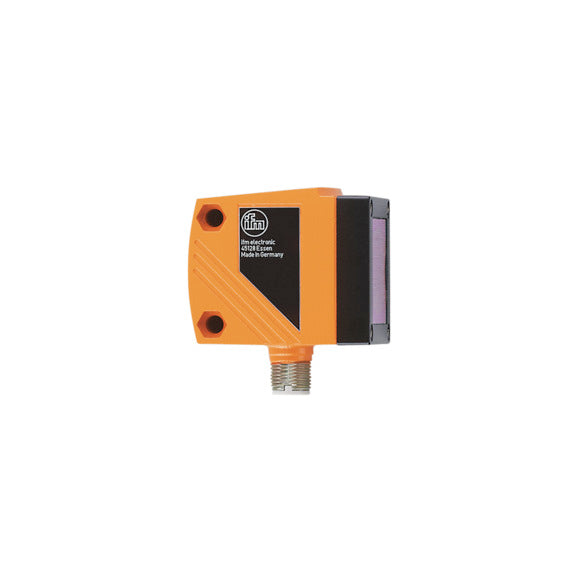

ifm electronic O1D100 - Laser Distance Sensor, Up to 10 m Range, IO-Link
ifm electronic O1D100 Laser Distance Sensor — 0.2-10 m measuring range with IO-Link and 4-digit display. laser class 2, two PNP switching outputs, one configurable analog output (4-20 mA / 0-10 V), IO-Link 1.1, M12 connection, IP 67.
MPN / SKU: O1D100
O1D100 Applications
The ifm electronic O1D100 is used in industrial automation for non-contact distance measurement, level monitoring and positioning tasks. It is well suited for detecting fill levels in tanks and hoppers, verifying part presence and stack height on conveyor lines, and monitoring the position of machine components and stored goods. With a scalable 0.2 to 10 m measuring range, a laser class 2 visible spot for easy alignment, IO-Link communication and a rugged IP 67 diecast zinc housing, it delivers reliable optical measurement in demanding factory environments.
O1D100 Specifications
| Brand | ifm electronic | Product Type | Laser Distance Sensor |
| Series | O1D | Article No. | O1DLF3KG/IO-LINK |
| Measuring Range | 0.2...10 m (white 90% remission) | Light Source | Laser, class 2, 650 nm, <= 4 mW |
| Max. Light Spot Diameter | 25 mm (at 10 m) | Sampling Rate | 1...50 Hz |
| Operating Voltage | 18...30 V DC | Current Consumption | < 150 mA |
| Outputs | 2 x PNP switching + 1 analog | Analog Output | 4...20 mA / 0...10 V (configurable) |
| Max. Current per Output | 200 mA | Communication Interface | IO-Link 1.1 (COM2, 38.4 kBaud) |
| Display | 4-digit alphanumeric | Electrical Connection | M12 connector, A-coded, 5-pin |
| Enclosure Rating | IP 67 | Ambient Temperature | -10...60 C |
| Housing Material | Diecast zinc; glass front lens | Dimensions | 59 x 42 x 52 mm |
| Weight | 243.5 g | Approvals | CE, UKCA, cULus, IO-Link |
O1D100 Datasheet & Manual
Download Datasheet & Manualifm electronic O1D100 · PDF · Official ifm electronic documentTrusted by
