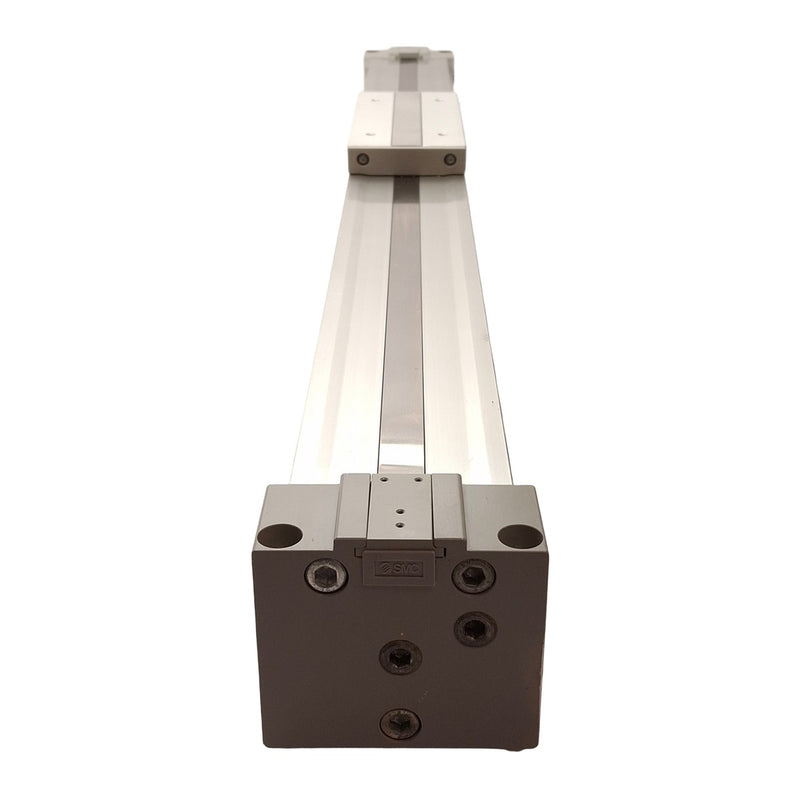

SMC MY1B63G700 (MY1B63G-700) - Mechanically Jointed Rodless Cylinder Basic Type, 63 mm Bore, 700 mm Stroke
SMC MY1B63G700 Mechanically Jointed Rodless Cylinder Basic Type — 700 mm standard stroke at 63 mm bore. 63 mm bore, 700 mm standard stroke, Rc port thread, centralized piping type, without auto switch.
MPN: MY1B63G-700 · SKU: MY1B63G700
MY1B63G-700 Applications
The SMC MY1B63G700 is the only Rc-ported part in this group: it omits the TF option, so its ports are Rc taper rather than G parallel, and it pairs the largest 63 mm bore with a 700 mm standard stroke. It is suited for long-travel transfer of heavy loads, gantry axes on palletising cells, and conveyor traverse where thrust demands exceed the 40 and 50 mm frames. Verify thread standard before substituting: an Rc port will not accept a G-parallel fitting without an adapter.
MY1B63G-700 Specifications
| Brand | SMC | Manufacturer Part No. | MY1B63G-700 |
| Product Type | Mechanically Jointed Rodless Cylinder Basic Type | Series | MY1B |
| Bore Size | 63 mm | Cylinder Stroke | 700 mm (standard stroke) |
| Port Thread Type | Rc | Piping | Centralized Piping Type |
| Stroke Adjusting Unit | Left side: without unit, Right side: without unit | Auto Switch | Without Auto Switch |
| Number of Auto Switches | 2 pcs. or none | Made to Order | Standard |
| Construction | Mechanically jointed rodless |
