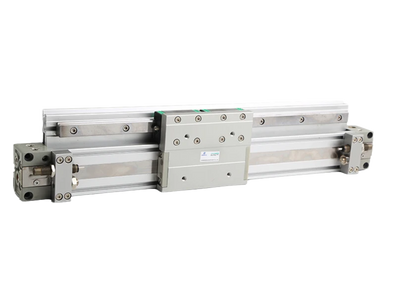

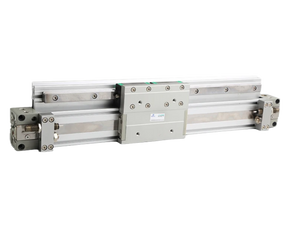

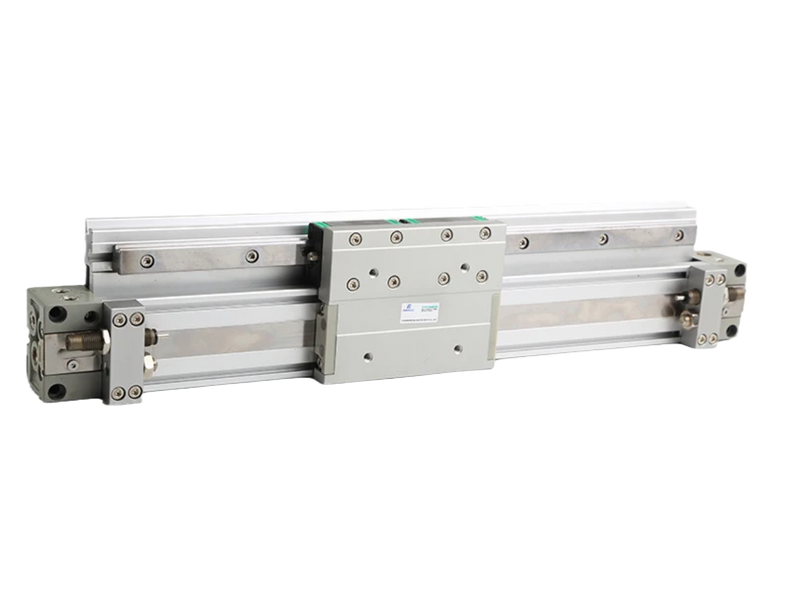

SMC MY1B50TFG400 (MY1B50TFG-400) - Mechanically Jointed Rodless Cylinder Basic Type, 50 mm Bore, 400 mm Stroke
SMC MY1B50TFG400 Mechanically Jointed Rodless Cylinder Basic Type — 400 mm standard stroke at 50 mm bore. 50 mm bore, 400 mm standard stroke, G port thread, centralized piping type, without auto switch.
MPN: MY1B50TFG-400 · SKU: MY1B50TFG400
MY1B50TFG-400 Applications
The SMC MY1B50TFG400 is the heavy-duty member of this group, pairing a 50 mm bore with a 400 mm standard stroke and G (BSPP) threaded ports. It is suited for high-thrust pusher and stopper stations, transferring heavy tooling or loaded carriers, and short-travel positioning where force is the limiting factor. The larger bore delivers markedly more thrust at the same supply pressure than the 32 and 40 mm frames. Centralized piping keeps both ports on a single end cap for straightforward manifolding.
MY1B50TFG-400 Specifications
| Brand | SMC | Manufacturer Part No. | MY1B50TFG-400 |
| Product Type | Mechanically Jointed Rodless Cylinder Basic Type | Series | MY1B |
| Bore Size | 50 mm | Cylinder Stroke | 400 mm (standard stroke) |
| Port Thread Type | G | Piping | Centralized Piping Type |
| Stroke Adjusting Unit | Left side: without unit, Right side: without unit | Auto Switch | Without Auto Switch |
| Number of Auto Switches | 2 pcs. or none | Made to Order | Standard |
| Construction | Mechanically jointed rodless |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
