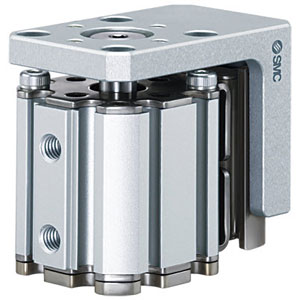

SMC MXZ2020 (MXZ20-20) - Compact Cylinder With Linear Guide, 20 mm Bore, 20 mm Stroke, Front Pilot Port
SMC MXZ2020 Compact Cylinder With Linear Guide — 20 mm bore with 20 mm stroke and front pilot port. 20 mm bore, 20 mm stroke, front pilot port location, built-in magnet, without mounting bolt.
MPN: MXZ20-20 · SKU: MXZ2020
MXZ20-20 Applications
The SMC MXZ2020 combines a 20 mm bore, a 20 mm stroke and a front pilot port location, making it a compact guided cylinder for tight installations. It is used in assembly automation, packaging machinery and machine tool loading, and is suited for clamping and part hold-down, short-travel pushing, and vertical lift stations. Because the MXZ builds a linear guide into the cylinder body and carries a built-in magnet as standard, the MXZ2020 resists side load and accepts auto switches without any added guide or bracket assembly.
MXZ20-20 Specifications
| Brand | SMC | Manufacturer Part No. | MXZ20-20 |
| Product Type | Compact Cylinder With Linear Guide | Series | MXZ |
| Bore Size | 20 mm | Stroke | 20 mm |
| Pilot Port Location | Front | Option | Without mounting bolt |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
