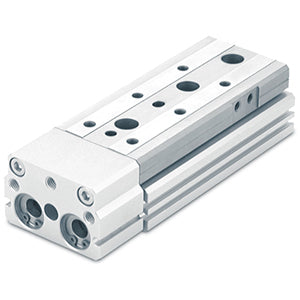

SMC MXQ840 Air Slide Table — extended 40 mm stroke on the 8 mm bore frame. 8 mm bore, 40 mm stroke, M thread/Rc ports, standard type, without adjuster.
MPN: MXQ8-40 · SKU: MXQ840
MXQ8-40 Applications
The extended 40 mm stroke of the SMC MXQ840 covers the gap between the mid-stroke tables and the long-travel variants on the same 8 mm bore. It is used in automated assembly, test and inspection rigs and material handling cells, and is suited to loading parts into a fixture, extending a sensor or gripper over a work area and multi-position sequencing. Integration of the guide rail and the table keeps deflection low even with the longer travel.
MXQ8-40 Specifications
| Brand | SMC | Manufacturer Part No. | MXQ8-40 |
| Product Type | Air Slide Table | Series | MXQ |
| Bore Size | 8 mm | Cylinder Stroke | 40 mm |
| Port Thread Type | M Thread, Rc | Symmetric | Standard Type |
| Adjuster Option | None | Functional Option | Standard |
| Auto Switch | Without Auto Switch | Number of Auto Switches | 2 pcs. Or None |
| Made to Order | Standard | Guide Type | Recirculating linear guide |
| Construction | Integrated guide rail and table |
