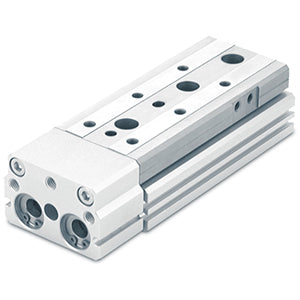

SMC MXQ830 Air Slide Table — mid 30 mm stroke on the 8 mm bore frame. 8 mm bore, 30 mm stroke, M thread/Rc ports, standard type, without adjuster.
MPN: MXQ8-30 · SKU: MXQ830
MXQ8-30 Applications
Sitting at the mid 30 mm stroke of the 8 mm bore frame, the SMC MXQ830 balances reach against footprint for general-purpose station work. It is used in machine building, electronics assembly and consumer goods packaging, and is suited to transferring parts between fixtures, advancing a tool into position and light clamping. The recirculating linear guide gives high rigidity and high precision, so repeatability holds up under the side loads typical of table-mounted tooling.
MXQ8-30 Specifications
| Brand | SMC | Manufacturer Part No. | MXQ8-30 |
| Product Type | Air Slide Table | Series | MXQ |
| Bore Size | 8 mm | Cylinder Stroke | 30 mm |
| Port Thread Type | M Thread, Rc | Symmetric | Standard Type |
| Adjuster Option | None | Functional Option | Standard |
| Auto Switch | Without Auto Switch | Number of Auto Switches | 2 pcs. Or None |
| Made to Order | Standard | Guide Type | Recirculating linear guide |
| Construction | Integrated guide rail and table |
