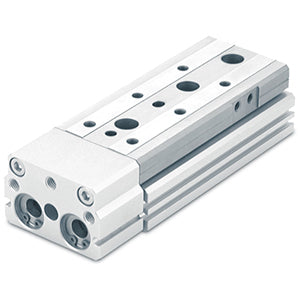

SMC MXQ620A (MXQ6-20A) - Air Slide Table, 6 mm Bore, Double End Adjuster
AED 2,253.00
Quantity
SMC MXQ620A Air Slide Table — double end adjuster fitted, unlike the plain-stroke siblings. 6 mm bore, 20 mm stroke, double end adjuster, M thread/Rc ports, standard type.
MPN: MXQ6-20A · SKU: MXQ620A
MXQ6-20A Applications
A double end adjuster sets the SMC MXQ620A apart from the plain 6 mm bore tables: stroke end position can be trimmed at both ends rather than accepted as built. It is used in precision assembly cells, laboratory automation and inspection rigs, and is suited to fine end-position tuning, repeatable stop setting and shock reduction at the stroke ends. The recirculating linear guide keeps the table rigid and accurate while the adjusters are dialled in.
MXQ6-20A Specifications
| Brand | SMC | Manufacturer Part No. | MXQ6-20A |
| Product Type | Air Slide Table | Series | MXQ |
| Bore Size | 6 mm | Cylinder Stroke | 20 mm |
| Port Thread Type | M Thread, Rc | Symmetric | Standard Type |
| Adjuster Option | A: Double end adjuster | Functional Option | Standard |
| Auto Switch | Without Auto Switch | Number of Auto Switches | 2 pcs. Or None |
| Made to Order | Standard | Guide Type | Recirculating linear guide |
| Construction | Integrated guide rail and table |
