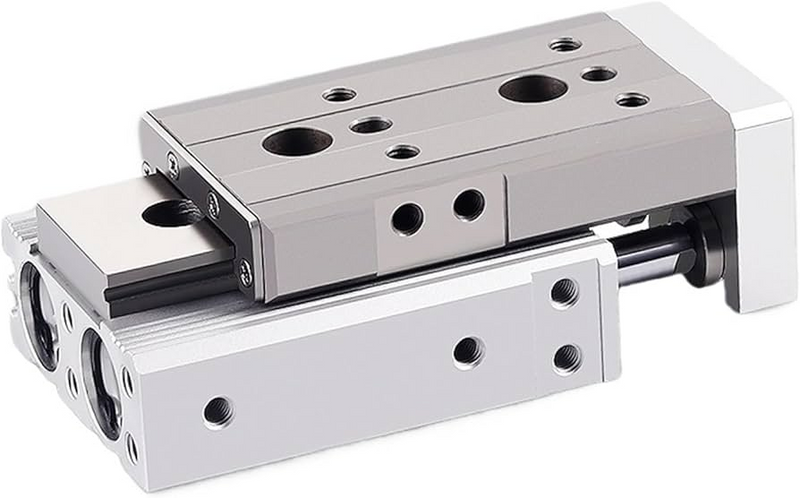

SMC MXQ16A40Z (MXQ16A-40Z) - Air Slide Table, Double Ported Type, 16 mm Bore, 40 mm Stroke

SMC MXQ16A40Z Air Slide Table, Double Ported Type — Ø16 mm bore with the short 40 mm stroke, both sides piping (double ported) body. 16 mm bore, 40 mm stroke, both sides piping (double ported) type, without adjuster, without auto switch.

MPN: MXQ16A-40Z · SKU: MXQ16A40Z

MXQ16A-40Z Applications

The SMC MXQ16A40Z is the short 40 mm stroke variant of the Ø16 mm double ported MXQA range, chosen where travel is tight and the table must stay compact. It is used in electronics assembly, laboratory automation, packaging and small-parts handling. It suits short-travel pick-and-place, part clamping, and gate or diverter actuation on compact machines. The integrated recirculating linear guide carries the load directly on the table, so the short stroke does not sacrifice rigidity and the actuator can be bolted straight to a sub-plate without an added guide.

MXQ16A-40Z Specifications
