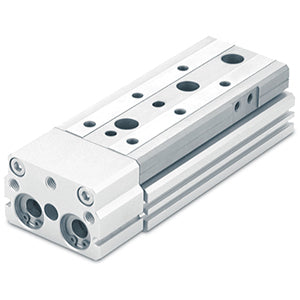

SMC MXQ1675A (MXQ16-75A) - Air Slide Table, Double End Adjuster, 16 mm Bore, 75 mm Stroke
SMC MXQ1675A Air Slide Table — Double end adjuster. 16 mm bore, 75 mm standard stroke, adjuster option A double end adjuster, standard functional option, M thread/Rc ports, recirculating linear guide.
MPN: MXQ16-75A · SKU: MXQ1675A
MXQ16-75A Applications
The double end adjuster is what distinguishes the SMC MXQ1675A from the plain MXQ16-75 at the same 75 mm stroke: SMC's adjuster option A fits adjusters at both stroke ends so each end position can be trimmed independently. It is used in electronics assembly, packaging, medical device production and precision transfer equipment. It is suited to pick-and-place where both end stops must be dialled in on site, stations needing shock absorption at each end, and fine-tuning travel after installation, all while keeping the rigidity of the integrated recirculating linear guide.
MXQ16-75A Specifications
| Brand | SMC | Manufacturer Part No. | MXQ16-75A |
| Product Type | Air Slide Table | Series | MXQ (MXQ-A-E) |
| Bore Size | 16 mm | Port Thread Type | M Thread, Rc |
| Symmetric | Standard Type | Cylinder Stroke | Standard Stroke 75 mm |
| Adjuster Option | Double end adjuster | Functional Option | Standard |
| Auto Switch | Without Auto Switch | Number of Auto Switches | 2 pcs. Or None |
| Made to Order | Standard | Guide Type | Recirculating linear guide, integrated with the table |
