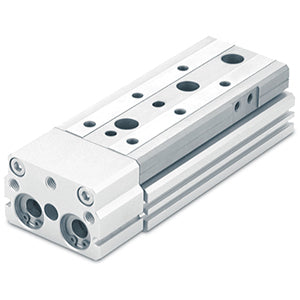

SMC MXQ1675 (MXQ16-75) - Air Slide Table, 16 mm Bore, 75 mm Stroke
SMC MXQ1675 Air Slide Table — 75 mm stroke with no adjuster fitted. 16 mm bore, 75 mm standard stroke, adjuster option none, standard functional option, M thread/Rc ports, recirculating linear guide, without auto switch.
MPN: MXQ16-75 · SKU: MXQ1675
MXQ16-75 Applications
The SMC MXQ1675 ships with no adjuster fitted, the plain counterpart to the double-end-adjuster MXQ16-75A at the same 75 mm stroke. It is used in electronics assembly, packaging machinery, machine tool loading and general factory automation. It is suited to longer pick-and-place transfer, moving parts across a work cell, and feeding components into a downstream station where the stroke ends are set by the table itself rather than trimmed on site. Integration of the guide rail and the table on a recirculating linear guide keeps rigidity and precision high over the extended travel.
MXQ16-75 Specifications
| Brand | SMC | Manufacturer Part No. | MXQ16-75 |
| Product Type | Air Slide Table | Series | MXQ (MXQ-A-E) |
| Bore Size | 16 mm | Port Thread Type | M Thread, Rc |
| Symmetric | Standard Type | Cylinder Stroke | Standard Stroke 75 mm |
| Adjuster Option | None | Functional Option | Standard |
| Auto Switch | Without Auto Switch | Number of Auto Switches | 2 pcs. Or None |
| Made to Order | Standard | Guide Type | Recirculating linear guide, integrated with the table |
