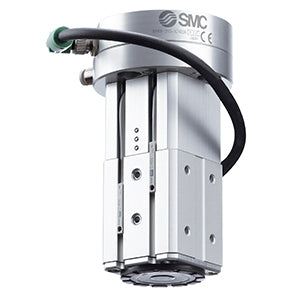

SMC MHM25DX7400A (MHM-25D-X7400A) - Magnet Gripper, 25 mm bore

SMC MHM25DX7400A Magnet Gripper — Magnetic gripper that holds metallic workpieces without vacuum cups, X7400A special variant. ø25 bore, double acting (D), MHM magnet gripper, M5 x 0.8 port, maximum holding force approx. 1000 N (±50) at 6 mm workpiece thickness, residual holding force 0.3 N or less, operating pressure 0.2 to 0.6 MPa, X7400A made-to-order special. Non-lube.

MPN: MHM-25D-X7400A · SKU: MHM25DX7400A

MHM-25D-X7400A Applications

The MHM-25D magnet gripper picks up flat metallic workpieces such as steel sheets in place of vacuum cups or mechanical fingers, which is useful when parts are perforated, oily or otherwise hard to grip by suction. The pneumatic magnet holds the workpiece and can retain it even if air is shut off, improving safety. The X7400A designation is a made-to-order special configuration; verify the exact holding-force and mounting details against the specific order specification before use.

MHM-25D-X7400A Specifications
