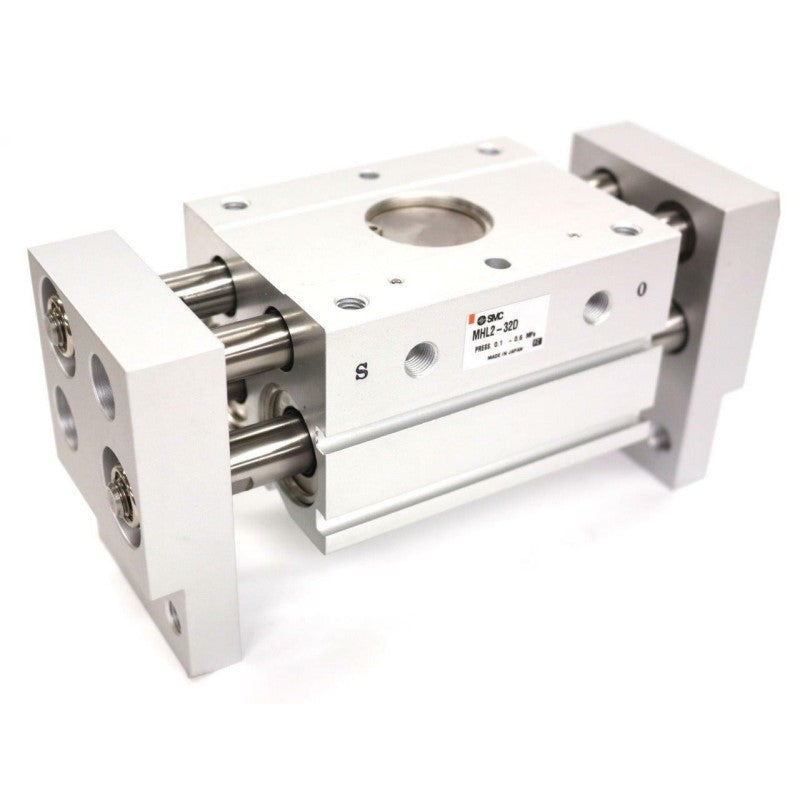

SMC MHL232D (MHL2-32D) - Air Gripper, 32 mm bore, wide-opening parallel gripper

SMC MHL232D Air Gripper — Wide-opening parallel two-finger gripper with long stroke for varied workpiece sizes. ø32 bore, double acting (D), MHL2 parallel-style wide-opening air gripper, opening/closing stroke 120 mm, double-piston mechanism, oil-impregnated resin bearings, built-in dust protection, auto switch capable. Operating pressure 0.1 to 0.6 MPa.

MPN: MHL2-32D · SKU: MHL232D

MHL2-32D Applications

The MHL2-32D is a wide-opening parallel air gripper suited to pick-and-place of parts that vary widely in size, since its long 120 mm opening/closing stroke lets one unit grip several diameters. The double-piston mechanism delivers high gripping force in a compact body, and the built-in dust-protection mechanism keeps the guide clean in dirty environments. Auto switches confirm open and closed states for reliable handling in assembly and robotic end-effector applications.

MHL2-32D Specifications
