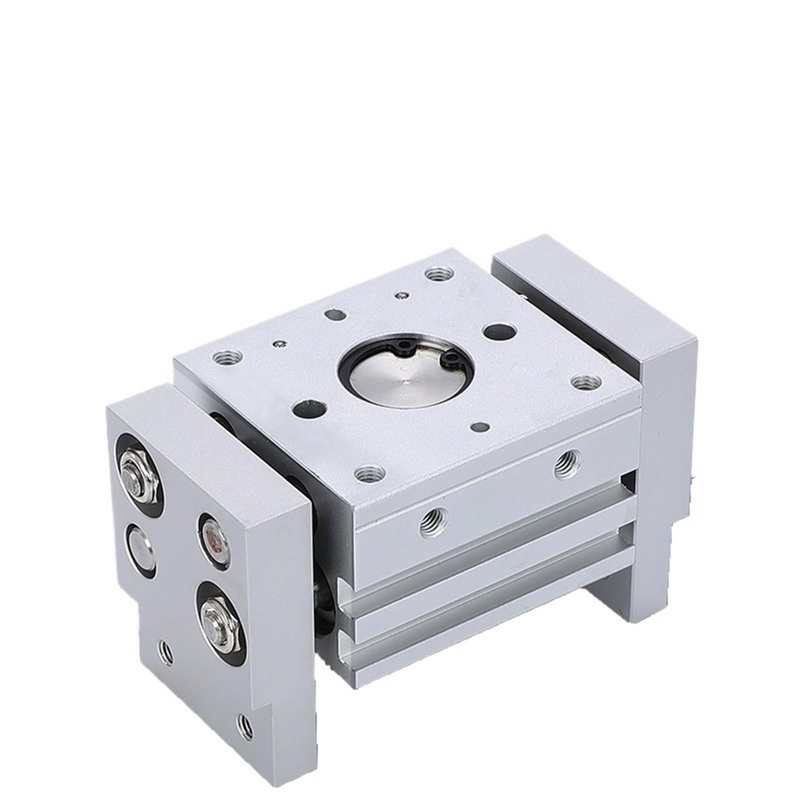

SMC MHL216D (MHL2-16D) - Air Gripper, Parallel Style, Wide Opening Type, 16 mm Bore, 30 mm Opening/Closing Stroke
SMC MHL216D Air Gripper, Parallel Style, Wide Opening Type — 16 mm bore with a 30 mm opening/closing stroke. Parallel style wide opening air gripper, 16 mm bore, 30 mm opening/closing stroke, Rc port, double piston.
MPN: MHL2-16D · SKU: MHL216D
MHL2-16D Applications
The SMC MHL216D pairs a 16 mm bore with a 30 mm opening/closing stroke, the smaller of the two wide-opening sizes and the one to pick when the workpiece is modest but still varies in size. It is used in packaging, electronics assembly, and machine tending. It is suited for picking parts with loose dimensional tolerance, handling irregular workpieces, and transfer between fixtures. SMC notes the long strokes suit holding large-size workpieces that have dimensional variances, the double pistons provide a large amount of gripping force, and a built-in dust-protection mechanism guards the mechanism.
MHL2-16D Specifications
| Brand | SMC | Manufacturer Part No. | MHL2-16D |
| Product Type | Air Gripper, Parallel Style, Wide Opening Type, Standard Type | Series | MHL2 Series |
| Bore Size | 16 mm | Port Thread Type | Rc |
| Opening/Closing Stroke | 30 mm (series range: 10:20 mm, 16:30 mm, 20:40 mm, 25:50 mm, 32:70 mm, 40:100 mm) | Auto Switch | Without Auto Switch |
| Number Of Auto Switches | 2 pcs. Or None | Made To Order | Standard |
