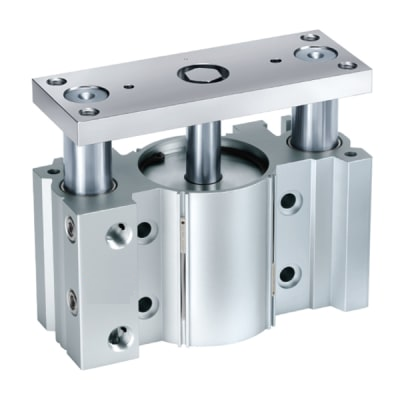

SMC MGQM80100 (MGQM80-100) - Compact Guide Cylinder, 80 mm Bore, 100 mm Stroke
SMC MGQM80100 Compact Guide Cylinder — 80 mm bore with a 100 mm stroke, the large-bore end of the range. Slide bearing, 80 mm bore, 100 mm standard stroke, Rc port, built-in magnet.
MPN: MGQM80-100 · SKU: MGQM80100
MGQM80-100 Applications
The SMC MGQM80100 sits at the large-bore end of the range, combining an 80 mm bore with a 100 mm stroke for the heaviest duty in this family. It is used in automotive body lines, heavy palletising, and large-format material handling. It is suited for stopping heavily loaded carriers, lifting large fixtures or tooling plates, and clamping oversized workpieces. At this bore the integrated guide matters most: the side loads a large payload imposes would deflect an unguided cylinder, whereas the built-in guide holds non-rotating accuracy across the full 100 mm travel.
MGQM80-100 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM80-100 |
| Product Type | Compact Guide Cylinder | Series | MGQ Series |
| Bearing Type | M - Slide Bearing | Bore Size | 80 mm |
| Cylinder Stroke | 100 mm (Standard Stroke) | Port Thread Type | Rc (series range: M5X0.8 for bore 12-16; Rc for bore 20-100) |
| Auto Switch | Without Auto Switch (Built-In Magnet) | Number Of Auto Switches | 2 pcs. Or None |
| Made To Order | Standard | Replacement Parts Seal Kit | MGQ80-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
