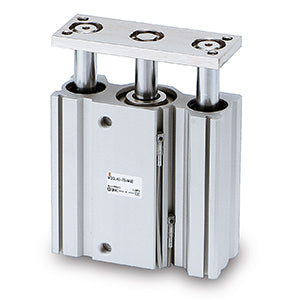

SMC MGQM3250 (MGQM32-50) - Compact Guide Cylinder, 32 mm Bore, 50 mm Stroke
SMC MGQM3250 Compact Guide Cylinder — 32 mm bore, the highest-thrust option in the 50 mm stroke group. Slide bearing, 32 mm bore, 50 mm standard stroke, Rc port, built-in magnet.
MPN: MGQM32-50 · SKU: MGQM3250
MGQM32-50 Applications
The SMC MGQM3250 is the highest-thrust option in the 50 mm stroke group, using a 32 mm bore where the 20 and 25 mm versions run out of force. It is used in automotive assembly, heavy conveyor lines, and press tending. It is suited for stopping heavy pallets, lifting substantial fixtures, and clamping loads that demand real force from a short stroke. Its integrated guide delivers lateral load resistance and high non-rotating accuracy, so the extra thrust does not translate into deflection or rotation at the tooling face.
MGQM32-50 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM32-50 |
| Product Type | Compact Guide Cylinder | Series | MGQ Series |
| Bearing Type | M - Slide Bearing | Bore Size | 32 mm |
| Cylinder Stroke | 50 mm (Standard Stroke) | Port Thread Type | Rc (series range: M5X0.8 for bore 12-16; Rc for bore 20-100) |
| Auto Switch | Without Auto Switch (Built-In Magnet) | Number Of Auto Switches | 2 pcs. Or None |
| Made To Order | Standard | Replacement Parts Seal Kit | MGQ32-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
