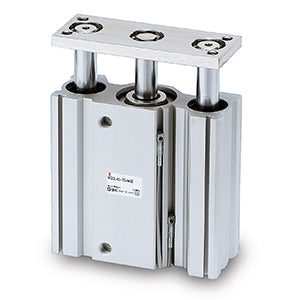

SMC MGQM2550 (MGQM25-50) - Compact Guide Cylinder, 25 mm Bore, 50 mm Stroke
SMC MGQM2550 Compact Guide Cylinder — 25 mm bore stepping up thrust over the 20 mm at the same 50 mm stroke. Slide bearing, 25 mm bore, 50 mm standard stroke, Rc port, built-in magnet.
MPN: MGQM25-50 · SKU: MGQM2550
MGQM25-50 Applications
The SMC MGQM2550 steps the bore up to 25 mm while holding the same 50 mm stroke as its 20 mm sibling, so it drops into the same travel envelope with more thrust. It is used in automotive component lines, palletising, and heavier conveyor automation. It is suited for stopping loaded pallets, lifting heavier fixtures, and clamping parts that need extra holding force. The integrated slide-bearing guide absorbs the larger side loads that come with heavier payloads, keeping the tool plate square without a bolt-on linear guide.
MGQM25-50 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM25-50 |
| Product Type | Compact Guide Cylinder | Series | MGQ Series |
| Bearing Type | M - Slide Bearing | Bore Size | 25 mm |
| Cylinder Stroke | 50 mm (Standard Stroke) | Port Thread Type | Rc (series range: M5X0.8 for bore 12-16; Rc for bore 20-100) |
| Auto Switch | Without Auto Switch (Built-In Magnet) | Number Of Auto Switches | 2 pcs. Or None |
| Made To Order | Standard | Replacement Parts Seal Kit | MGQ25-PS |
