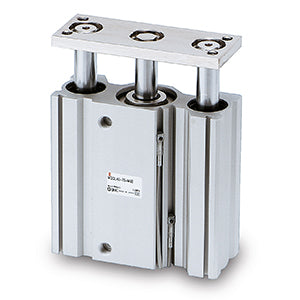

SMC MGQM2050 (MGQM20-50) - Compact Guide Cylinder, 20 mm Bore, 50 mm Stroke
SMC MGQM2050 Compact Guide Cylinder — 20 mm bore, the smallest bore in the series to use an Rc port instead of M5. Slide bearing, 20 mm bore, 50 mm standard stroke, Rc port, built-in magnet.
MPN: MGQM20-50 · SKU: MGQM2050
MGQM20-50 Applications
The SMC MGQM2050 is the smallest bore in the series to switch from an M5 port to an Rc port, which is the practical break point when sizing fittings for a line. It is used in conveyor handling, automotive sub-assembly, and general factory automation. It is suited for stopper duty at higher thrust, lifter work with heavier trays, and clamping where the 16 mm bore runs short of force. The integrated guide gives lateral load resistance and high non-rotating accuracy in a body far shorter than a cylinder plus separate guide.
MGQM20-50 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM20-50 |
| Product Type | Compact Guide Cylinder | Series | MGQ Series |
| Bearing Type | M - Slide Bearing | Bore Size | 20 mm |
| Cylinder Stroke | 50 mm (Standard Stroke) | Port Thread Type | Rc (series range: M5X0.8 for bore 12-16; Rc for bore 20-100) |
| Auto Switch | Without Auto Switch (Built-In Magnet) | Number Of Auto Switches | 2 pcs. Or None |
| Made To Order | Standard | Replacement Parts Seal Kit | MGQ20-PS |
