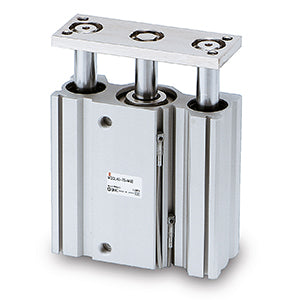

SMC MGQM1650 (MGQM16-50) - Compact Guide Cylinder, 16 mm Bore, 50 mm Stroke
SMC MGQM1650 Compact Guide Cylinder — 16 mm bore at the longest 50 mm stroke of the bore-16 group. Slide bearing, 16 mm bore, 50 mm standard stroke, M5 x 0.8 port, built-in magnet.
MPN: MGQM16-50 · SKU: MGQM1650
MGQM16-50 Applications
The SMC MGQM1650 runs the 16 mm bore out to the longest 50 mm stroke of the bore-16 group, giving maximum reach at the smallest thrust class. It is used in conveyor lines, packaging machinery, and laboratory automation. It is suited for tall stopper gates, lifters that must clear a raised product, and pushers needing full travel from a small envelope. The slide-bearing guide carries the side load across the extended stroke, so the tooling plate stays aligned at full extension without an external linear guide.
MGQM16-50 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM16-50 |
| Product Type | Compact Guide Cylinder | Series | MGQ Series |
| Bearing Type | M - Slide Bearing | Bore Size | 16 mm |
| Cylinder Stroke | 50 mm (Standard Stroke) | Port Thread Type | M5 x 0.8 (series range: M5X0.8 for bore 12-16; Rc for bore 20-100) |
| Auto Switch | Without Auto Switch (Built-In Magnet) | Number Of Auto Switches | 2 pcs. Or None |
| Made To Order | Standard | Replacement Parts Seal Kit | MGQ16-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
