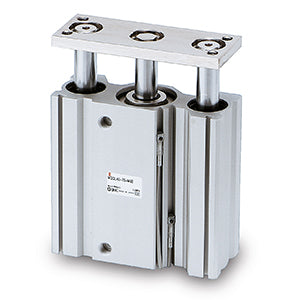

SMC MGQM1620 (MGQM16-20) - Compact Guide Cylinder, 16 mm Bore, 20 mm Stroke
SMC MGQM1620 Compact Guide Cylinder — 16 mm bore paired with the shortest 20 mm stroke in this group. Slide bearing, 16 mm bore, 20 mm standard stroke, M5 x 0.8 port, built-in magnet.
MPN: MGQM16-20 · SKU: MGQM1620
MGQM16-20 Applications
The SMC MGQM1620 pairs a 16 mm bore with the shortest 20 mm stroke in this group, making it the most compact option where headroom above the conveyor is tight. It is used in packaging lines, electronics assembly, and small-parts handling cells. It is suited for short-travel stopper duty, light lifter work, and clamping of small workpieces. Because the guide rods are integrated into the cylinder body, it resists lateral load and holds non-rotating accuracy without a separate guide assembly, which keeps the mounting footprint small.
MGQM16-20 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM16-20 |
| Product Type | Compact Guide Cylinder | Series | MGQ Series |
| Bearing Type | M - Slide Bearing | Bore Size | 16 mm |
| Cylinder Stroke | 20 mm (Standard Stroke) | Port Thread Type | M5 x 0.8 (series range: M5X0.8 for bore 12-16; Rc for bore 20-100) |
| Auto Switch | Without Auto Switch (Built-In Magnet) | Number Of Auto Switches | 2 pcs. Or None |
| Made To Order | Standard | Replacement Parts Seal Kit | MGQ16-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
