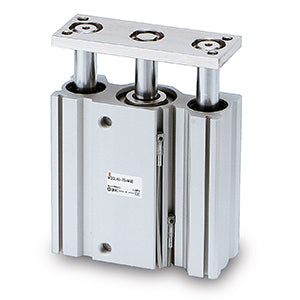

SMC MGQM1610 (MGQM16-10) - Compact Guide Cylinder, Slide Bearing, 16 mm Bore, 10 mm Stroke
SMC MGQM1610 Compact Guide Cylinder — 16 mm bore with slide bearing, 10 mm stroke. Slide bearing, 16 mm bore, 10 mm stroke, M5 x 0.8 port thread, built-in magnet.
MPN: MGQM16-10 · SKU: MGQM1610
MGQM16-10 Applications
The 16 mm bore gives the SMC MGQM1610 more thrust than the 12 mm MGQM1210 while keeping the same short 10 mm stroke and slide bearing. It is used in packaging, food processing and general factory automation. It is suited to conveyor stoppers arresting heavier product, compact clamping stations, and lifter duty in shallow envelopes. The bigger bore retains M5 x 0.8 porting and a compact footprint, while the integrated guide absorbs lateral load so the short stroke stays accurate under repeated impact.
MGQM16-10 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM16-10 |
| Product Type | Compact Guide Cylinder | Series | MGQ |
| Bearing Type | Slide Bearing (M) | Bore Size | 16 mm |
| Cylinder Stroke | 10 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGQ16-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
