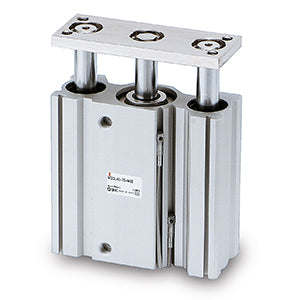

SMC MGQM1220 (MGQM12-20) - Compact Guide Cylinder, Slide Bearing, 12 mm Bore, 20 mm Stroke
SMC MGQM1220 Compact Guide Cylinder — slide bearing at 20 mm stroke. Slide bearing, 12 mm bore, 20 mm stroke, M5 x 0.8 port thread, built-in magnet.
MPN: MGQM12-20 · SKU: MGQM1220
MGQM12-20 Applications
Pairing the robust slide bearing with a 20 mm stroke, the SMC MGQM1220 is the load-tolerant counterpart to the ball bushing MGQL1220. It is used in packaging lines, electronics assembly and light materials handling. It is suited to conveyor stopper and lifter duty, short vertical transfers, and gate actuation where the plate absorbs repeated impact. The integrated guide takes the lateral load directly, so the 12 mm bore keeps non-rotating accuracy over the longer stroke while the slide bearing shrugs off shock that would mark a recirculating-ball element.
MGQM12-20 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM12-20 |
| Product Type | Compact Guide Cylinder | Series | MGQ |
| Bearing Type | Slide Bearing (M) | Bore Size | 12 mm |
| Cylinder Stroke | 20 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGQ12-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
