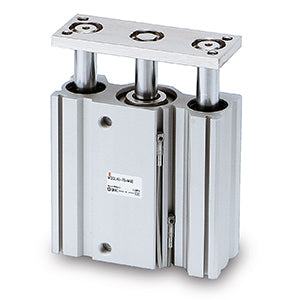

SMC MGQM1210 (MGQM12-10) - Compact Guide Cylinder, Slide Bearing, 12 mm Bore, 10 mm Stroke
SMC MGQM1210 Compact Guide Cylinder — slide bearing at 10 mm stroke. Slide bearing, 12 mm bore, 10 mm stroke, M5 x 0.8 port thread, built-in magnet.
MPN: MGQM12-10 · SKU: MGQM1210
MGQM12-10 Applications
The slide bearing distinguishes the SMC MGQM1210 from the ball bushing MGQL1210 at the same 12 mm bore and 10 mm stroke, favouring higher load capacity and impact tolerance over low friction. It is used in electronics assembly, packaging and small-parts handling. It is suited to short stopper strokes on conveyors, lifter duty, and clamping where the plate takes a knock. The integrated guide resists lateral load and holds high non-rotating accuracy, making the slide bearing the tougher pick for repetitive contact duty.
MGQM12-10 Specifications
| Brand | SMC | Manufacturer Part No. | MGQM12-10 |
| Product Type | Compact Guide Cylinder | Series | MGQ |
| Bearing Type | Slide Bearing (M) | Bore Size | 12 mm |
| Cylinder Stroke | 10 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGQ12-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
