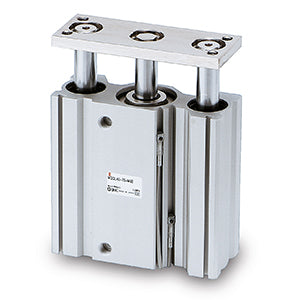

SMC MGQL1650 (MGQL16-50) - Compact Guide Cylinder, Ball Bushing Bearing, 16 mm Bore, 50 mm Stroke
SMC MGQL1650 Compact Guide Cylinder — longest 50 mm stroke with ball bushing bearing at 16 mm bore. Ball bushing bearing, 16 mm bore, 50 mm stroke, M5 x 0.8 port thread, built-in magnet.
MPN: MGQL16-50 · SKU: MGQL1650
MGQL16-50 Applications
At 50 mm the SMC MGQL1650 offers the longest reach of the 16 mm ball bushing bearing variants, well beyond the 20 mm MGQL1620. It is used in packaging machinery, automotive sub-assembly and materials handling. It is suited to lifting cartons clear of a conveyor, extending tooling into a work cell, and pusher or diverter duty needing real travel. The ball bushing bearing keeps friction low over the long stroke while the integrated guide maintains non-rotating accuracy at full extension, where an unguided rod would deflect.
MGQL16-50 Specifications
| Brand | SMC | Manufacturer Part No. | MGQL16-50 |
| Product Type | Compact Guide Cylinder | Series | MGQ |
| Bearing Type | Ball Bushing Bearing (L) | Bore Size | 16 mm |
| Cylinder Stroke | 50 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGQ16-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
