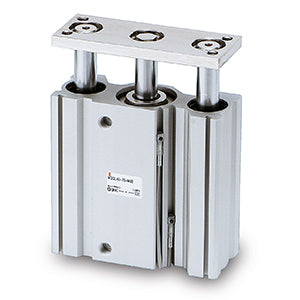

SMC MGQL1620 (MGQL16-20) - Compact Guide Cylinder, Ball Bushing Bearing, 16 mm Bore, 20 mm Stroke
SMC MGQL1620 Compact Guide Cylinder — 16 mm bore with ball bushing bearing, 20 mm stroke. Ball bushing bearing, 16 mm bore, 20 mm stroke, M5 x 0.8 port thread, built-in magnet.
MPN: MGQL16-20 · SKU: MGQL1620
MGQL16-20 Applications
Stepping up to a 16 mm bore, the SMC MGQL1620 delivers noticeably more thrust than the 12 mm MGQL1220 at the same 20 mm stroke and same ball bushing bearing. It is used in packaging, food processing and general factory automation. It is suited to conveyor stoppers halting heavier cartons, lifter stations, and clamping where a firmer hold is needed. The larger bore keeps the M5 x 0.8 porting and compact envelope while the integrated guide absorbs lateral load, so it drops into the same class of mounting.
MGQL16-20 Specifications
| Brand | SMC | Manufacturer Part No. | MGQL16-20 |
| Product Type | Compact Guide Cylinder | Series | MGQ |
| Bearing Type | Ball Bushing Bearing (L) | Bore Size | 16 mm |
| Cylinder Stroke | 20 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGQ16-PS |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
