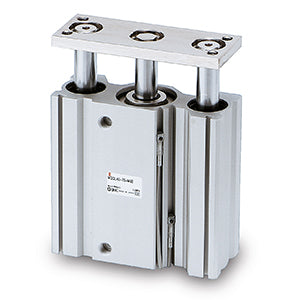

SMC MGQL1220 (MGQL12-20) - Compact Guide Cylinder, Ball Bushing Bearing, 12 mm Bore, 20 mm Stroke
SMC MGQL1220 Compact Guide Cylinder — ball bushing bearing at 20 mm stroke. Ball bushing bearing, 12 mm bore, 20 mm stroke, M5 x 0.8 port thread, built-in magnet.
MPN: MGQL12-20 · SKU: MGQL1220
MGQL12-20 Applications
Doubling the stroke to 20 mm while keeping the low-friction ball bushing bearing, the SMC MGQL1220 covers transfers that the 10 mm MGQL1210 cannot reach. It is used in packaging lines, electronics assembly and laboratory automation. It is suited to conveyor stopper and lifter duty, short vertical pick-and-place moves, and gate or diverter actuation. The integrated guide carries the lateral load directly, so the 12 mm bore holds non-rotating accuracy across the longer stroke without an external rail.
MGQL12-20 Specifications
| Brand | SMC | Manufacturer Part No. | MGQL12-20 |
| Product Type | Compact Guide Cylinder | Series | MGQ |
| Bearing Type | Ball Bushing Bearing (L) | Bore Size | 12 mm |
| Cylinder Stroke | 20 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGQ12-PS |
