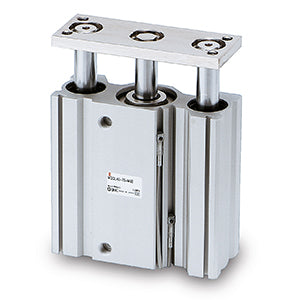

SMC MGQL1210 (MGQL12-10) - Compact Guide Cylinder, Ball Bushing Bearing, 12 mm Bore, 10 mm Stroke
SMC MGQL1210 Compact Guide Cylinder — ball bushing bearing at 10 mm stroke. Ball bushing bearing, 12 mm bore, 10 mm stroke, M5 x 0.8 port thread, built-in magnet.
MPN: MGQL12-10 · SKU: MGQL1210
MGQL12-10 Applications
The ball bushing bearing makes the SMC MGQL1210 the low-friction choice at 10 mm stroke, where its slide-bearing sibling MGQM1210 trades smoothness for compactness. It is used in electronics assembly, packaging machinery and small-parts handling. It is suited to short stopper strokes on conveyor lines, lifter duty under light lateral load, and pick-and-place indexing in tight envelopes. The integrated guide resists side load and holds high non-rotating accuracy, so the 12 mm bore delivers repeatable positioning without a separate guide assembly.
MGQL12-10 Specifications
| Brand | SMC | Manufacturer Part No. | MGQL12-10 |
| Product Type | Compact Guide Cylinder | Series | MGQ |
| Bearing Type | Ball Bushing Bearing (L) | Bore Size | 12 mm |
| Cylinder Stroke | 10 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGQ12-PS |
