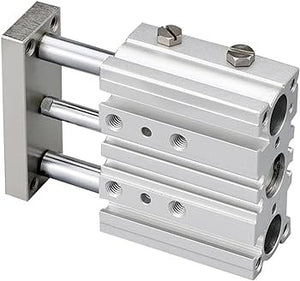

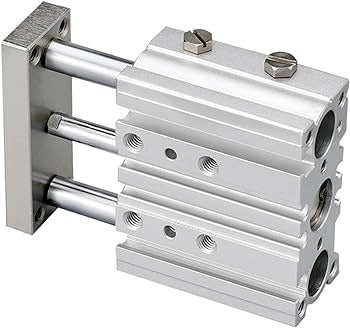

SMC MGPWL50TF50 (MGPWL50TF-50) - Compact Guide Cylinder, Wide Type, Ball Bushing Bearing, 50 mm Bore, 50 mm Stroke
SMC MGPWL50TF50 Compact Guide Cylinder, Wide Type — wide type with doubled guide pitch, G port. Ball bushing bearing, 50 mm bore, 50 mm stroke, G port thread, built-in magnet.
MPN: MGPWL50TF-50 · SKU: MGPWL50TF50
MGPWL50TF-50 Applications
The wide type doubles the guide pitch versus the basic MGP body, so the SMC MGPWL50TF50 resists plate rotation far better at the same weight. It is used in automated assembly, packaging and automotive production lines. It is suited to stopper and lifter duty on conveyors, pick-and-place transfers carrying offset loads, and clamping stations where a workpiece overhangs the plate. The wider guide-rod spread raises allowable rotational torque and non-rotating accuracy without adding mass, which makes it a direct upgrade wherever a standard-pitch guide cylinder is deflecting under eccentric load.
MGPWL50TF-50 Specifications
| Brand | SMC | Manufacturer Part No. | MGPWL50TF-50 |
| Product Type | Compact Guide Cylinder, Wide Type | Series | MGPW |
| Bearing Type | Ball Bushing Bearing (L) | Bore Size | 50 mm |
| Cylinder Stroke | 50 mm (standard stroke) | Port Thread Type | G (TF) |
| Auto Switch | Without auto switch (built-in magnet) | Number of Auto Switches | 2 pcs. or none |
| Made to Order | Standard | Replacement Parts Seal Kit | MGP50-Z-PS |
