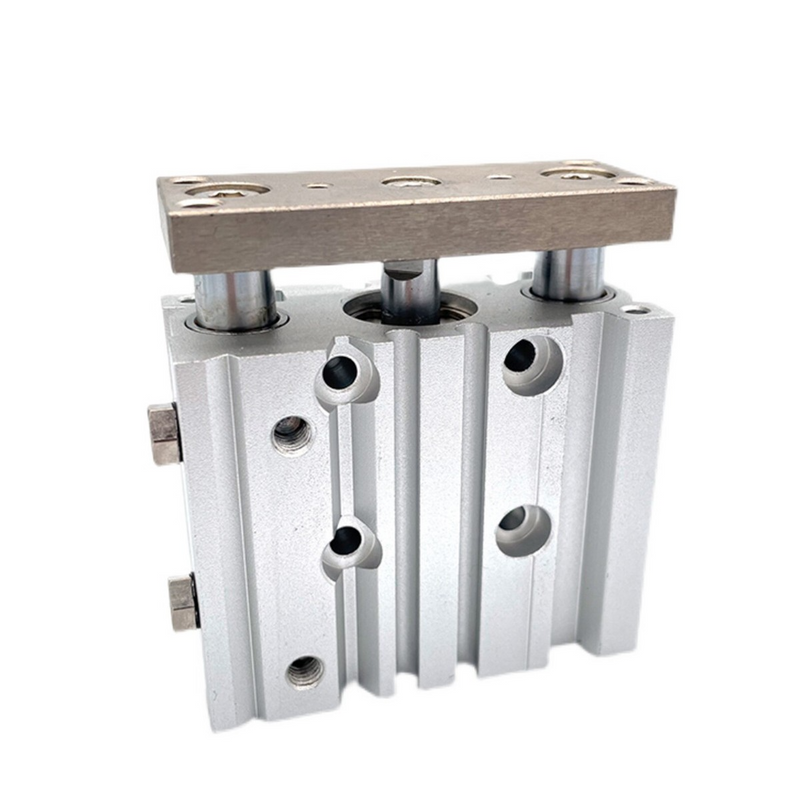

SMC MGPM40125Z (MGPM40-125Z) - Compact Guide Cylinder, 40mm Bore, 125mm Stroke
SMC MGPM40125Z Compact Guide Cylinder — larger 40 mm bore with Rc (taper) ports and 125 mm stroke. 40 mm bore, 125 mm standard stroke, slide bearing, Rc port thread, built-in magnet, double acting.
MPN: MGPM40-125Z · SKU: MGPM40125Z
MGPM40-125Z Applications
Stepping up to a 40 mm bore, the SMC MGPM40125Z delivers roughly 56 percent more thrust than the 32 mm sizes at the same supply pressure, over a 125 mm stroke. It suits heavier lifting and clamping duty: pallet and tray elevators, press-tool approach, and transfer of substantial assemblies where a smaller bore would run short of force. Note the port thread — without a TF suffix this build carries Rc taper ports rather than G parallel, so confirm your fittings match before ordering.
MGPM40-125Z Specifications
| Brand | SMC | Manufacturer Part No. | MGPM40-125Z |
| Product Type | Compact Guide Cylinder | Series | MGP-Z Series Compact Guide Cylinder |
| Bearing Type | M — Slide Bearing | Bore Size | Bore Size 40 mm |
| Port Thread Type | M5X0.8(Φ12-16);Rc(Φ20-100) | Cylinder Stroke | Standard Stroke 125 mm |
| Stroke Adjustment Symbol | None | Auto Switch | Without Auto Switch (With Built-in Magnet) *When Made To Order Is XB6 Without Built-in Magnet |
| Number Of Auto Switches | 2 pcs. Or None | Made To Order | Standard |
| Replacement Seal Kit | MGP40-Z-PS |
