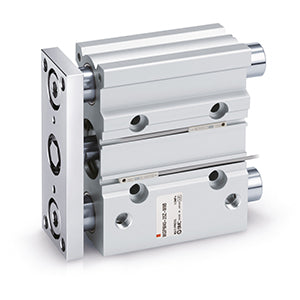

SMC MGPM25TF300Z (MGPM25TF-300Z) - Compact Guide Cylinder, 25 mm Bore, 300 mm Stroke, G Port
SMC MGPM25TF300Z Compact Guide Cylinder — 300 mm stroke, the longest travel offered in this bore 25 group. 25 mm bore, 300 mm stroke, G (TF) port thread, slide bearing, built-in magnet, standard stroke.
MPN: MGPM25TF-300Z · SKU: MGPM25TF300Z
MGPM25TF-300Z Applications
At 300 mm the SMC MGPM25TF300Z offers the longest travel in this bore 25 group, replacing a rodless cylinder or a short linear axis where the duty is a simple in-out move. It is used on stacking and destacking columns, on deep-tote pick stations, and on vertical lifts feeding an overhead conveyor. Confirm the code before ordering: this 300 mm unit differs from the 30 mm MGPM25TF30Z by one digit, and the two are not interchangeable in a machine.
MGPM25TF-300Z Specifications
| Brand | SMC | Manufacturer Part No. | MGPM25TF-300Z |
| Product Type | Compact Guide Cylinder | Series | MGP-Z |
| Bearing Type | Slide Bearing (symbol M) | Bore Size | 25 mm |
| Cylinder Stroke | 300 mm (Standard Stroke) | Port Thread Type | G (symbol TF) |
| Stroke Adjustment | None | Auto Switch | Without auto switch (with built-in magnet) |
| Number of Auto Switches | 2 pcs. or none | Made to Order | Standard |
