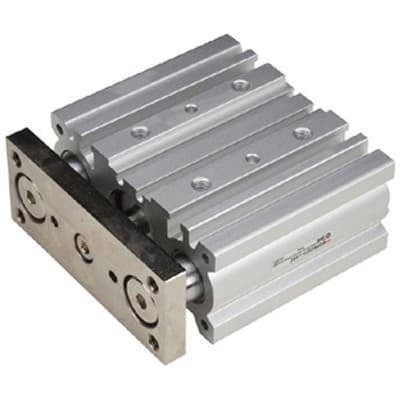

SMC MGPM25300Z (MGPM25-300Z) - Compact Guide Cylinder, 25 mm bore, 300 mm stroke guide cylinder

SMC MGPM25300Z Compact Guide Cylinder — Slide-bearing compact guide cylinder with integral guide rods for high side-load handling. Bore 25 mm, stroke 300 mm, slide bearing type (M), MGP-Z series compact guide cylinder, double acting, magnet-equipped for auto switch (Z). Integral twin guide rods resist rotation and side load; body doubles as guide body for compact design.

MPN: MGPM25-300Z · SKU: MGPM25300Z

MGPM25-300Z Applications

The MGPM25-300Z is a slide-bearing compact guide cylinder used in material handling, lifting, stopping and pusher applications where the load imposes side forces on the rod. Its two integral guide rods carry moment and lateral loads that a plain cylinder could not, while the plate provides a flat mounting surface for tooling. The 300 mm stroke suits long-reach transfer moves, and the magnet built into the piston allows auto switches for end-of-stroke position confirmation.

MGPM25-300Z Specifications
