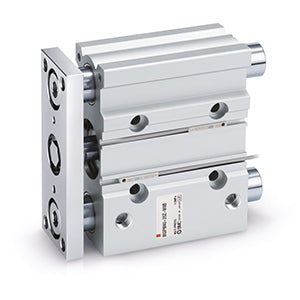

SMC MGPM16250Z (MGPM16-250Z) - Compact Guide Cylinder, 16 mm Bore, 250 mm Stroke
AED 1,189.00
Quantity
SMC MGPM16250Z Compact Guide Cylinder — 250 mm stroke. 16 mm bore, 250 mm stroke, M5 x 0.8 port, slide bearing, built-in magnet.
MPN: MGPM16-250Z · SKU: MGPM16250Z
MGPM16-250Z Applications
At 250 mm the SMC MGPM16250Z offers the longest travel in this batch of the 16 mm bore range, built for full-height lifting moves. It is applied in vertical elevators on small conveyors, long insertion strokes on assembly rigs, and lift-and-transfer between stacked levels. At this extension the guided design is what makes the 16 mm bore usable: the twin rods and slide bearings, not the piston rod, carry the load and hold alignment.
MGPM16-250Z Specifications
| Brand | SMC | Manufacturer Part No. | MGPM16-250Z |
| Product Type | Compact Guide Cylinder | Series | MGP-Z |
| Bearing Type | M - Slide Bearing | Bore Size | 16 mm |
| Cylinder Stroke | 250 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Stroke Adjustment | None | Auto Switch | Without auto switch (with built-in magnet) |
| Number of Auto Switches | 2 pcs. or none | Made to Order | Standard |
