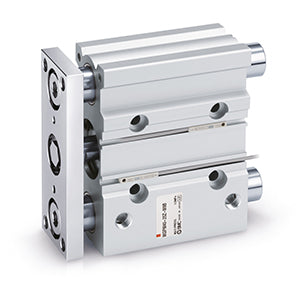

SMC MGPM16200Z (MGPM16-200Z) - Compact Guide Cylinder, 16 mm Bore, 200 mm Stroke
AED 1,107.00
Quantity
SMC MGPM16200Z Compact Guide Cylinder — 200 mm stroke. 16 mm bore, 200 mm stroke, M5 x 0.8 port, slide bearing, built-in magnet.
MPN: MGPM16-200Z · SKU: MGPM16200Z
MGPM16-200Z Applications
The 200 mm stroke of the SMC MGPM16200Z serves lifting and long-transfer duty where a rodless cylinder would be overkill. It is used in vertical lift tables for light loads, extended pusher strokes on palletising cells, and door and gate motion on machine guarding. The M5 port at this stroke keeps plumbing compact, and the built-in magnet allows end-of-stroke confirmation over the full travel without a separate external sensor rail.
MGPM16-200Z Specifications
| Brand | SMC | Manufacturer Part No. | MGPM16-200Z |
| Product Type | Compact Guide Cylinder | Series | MGP-Z |
| Bearing Type | M - Slide Bearing | Bore Size | 16 mm |
| Cylinder Stroke | 200 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Stroke Adjustment | None | Auto Switch | Without auto switch (with built-in magnet) |
| Number of Auto Switches | 2 pcs. or none | Made to Order | Standard |
