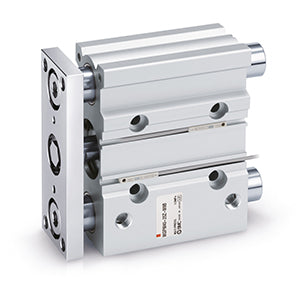

SMC MGPM16125Z (MGPM16-125Z) - Compact Guide Cylinder, 16 mm Bore, 125 mm Stroke
AED 887.00
Quantity
SMC MGPM16125Z Compact Guide Cylinder — 125 mm stroke. 16 mm bore, 125 mm stroke, M5 x 0.8 port, slide bearing, built-in magnet.
MPN: MGPM16-125Z · SKU: MGPM16125Z
MGPM16-125Z Applications
The 125 mm stroke of the SMC MGPM16125Z suits transfer moves that span a full machine station. It is applied in shuttle transfer between conveyor lanes, magazine feeding of trays and cartons, and extend-retract motion on light gantry axes. At this travel the slide-bearing guide does real work resisting the moment created by an extended plate, keeping anti-rotation accuracy tight so downstream grippers meet the part in the same position each cycle.
MGPM16-125Z Specifications
| Brand | SMC | Manufacturer Part No. | MGPM16-125Z |
| Product Type | Compact Guide Cylinder | Series | MGP-Z |
| Bearing Type | M - Slide Bearing | Bore Size | 16 mm |
| Cylinder Stroke | 125 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Stroke Adjustment | None | Auto Switch | Without auto switch (with built-in magnet) |
| Number of Auto Switches | 2 pcs. or none | Made to Order | Standard |
