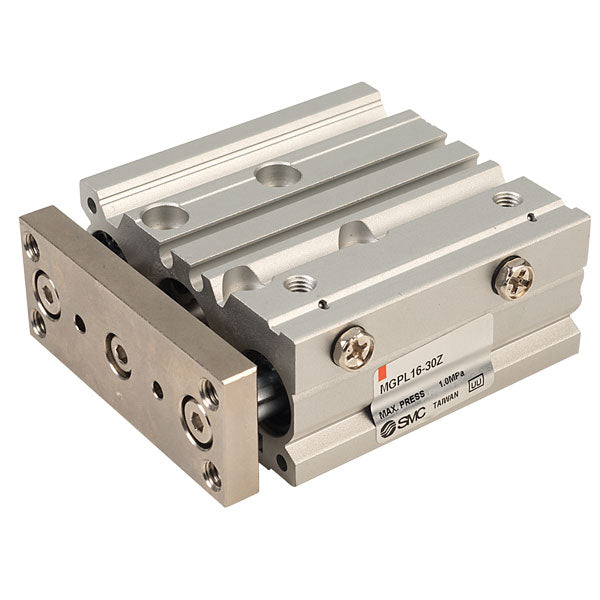

SMC MGPL1630Z (MGPL16-30Z) - Compact Guide Cylinder, 16 mm Bore, 30 mm Stroke
SMC MGPL1630Z Compact Guide Cylinder — 30 mm stroke. Ball bushing bearing type, 16 mm bore, 30 mm standard stroke, M5 x 0.8 port thread, double acting, with built-in magnet.
MPN: MGPL16-30Z · SKU: MGPL1630Z
MGPL16-30Z Applications
The SMC MGPL1630Z delivers a short 30 mm stroke in the 16 mm bore MGP-Z family, making it well suited to compact pick-and-place heads, small clamping and stopper stations, and gate or diverter actuation on packaging lines. The shortened guide rod and thinner plate cut weight by up to 24 percent and free space beneath the cylinder body. Ball bushing bearings give smooth, low-friction travel and hold plate accuracy under side load.
MGPL16-30Z Specifications
| Brand | SMC | Manufacturer Part No. | MGPL16-30Z |
| Product Type | Compact Guide Cylinder | Series | MGP-Z |
| Bearing Type | L - Ball Bushing Bearing | Bore Size | 16 mm |
| Cylinder Stroke | 30 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Action | Double Acting | Auto Switch | Without auto switch (with built-in magnet) |
| Number of Auto Switches | 2 pcs. or none | Made to Order | Standard |
| Replacement Parts Seal Kit | MGP16-Z-PS | Grease Pack | GR-S-010 |
