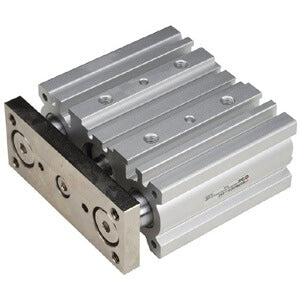

SMC MGPL1620ZXC6A (MGPL16-20Z-XC6A) - Compact Guide Cylinder, 16 mm Bore, 20 mm Stroke, XC6A Stainless Steel Spec
SMC MGPL1620ZXC6A Compact Guide Cylinder — 20 mm stroke, -XC6A made-to-order spec with stainless steel on all standard iron parts. Ball bushing bearing type, 16 mm bore, 20 mm standard stroke, M5 x 0.8 port thread, double acting, with built-in magnet.
MPN: MGPL16-20Z-XC6A · SKU: MGPL1620ZXC6A
MGPL16-20Z-XC6A Applications
The SMC MGPL1620ZXC6A is the -XC6A made-to-order build of the 20 mm stroke MGPL16, supplied with stainless steel on all standard iron parts. That corrosion-resistant specification suits food and beverage lines, washdown areas, packaging machinery and humid or chemically aggressive plant rooms where a standard carbon-steel guide cylinder would rust. The ball bushing bearing keeps the plate accurate under transverse load, while the built-in magnet allows auto switch mounting for position feedback.
MGPL16-20Z-XC6A Specifications
| Brand | SMC | Manufacturer Part No. | MGPL16-20Z-XC6A |
| Product Type | Compact Guide Cylinder | Series | MGP-Z |
| Bearing Type | L - Ball Bushing Bearing | Bore Size | 16 mm |
| Cylinder Stroke | 20 mm (standard stroke) | Port Thread Type | M5 x 0.8 |
| Action | Double Acting | Auto Switch | Without auto switch (with built-in magnet) |
| Number of Auto Switches | 2 pcs. or none | Made to Order | XC6A - Stainless steel used on all standard iron parts |
| Replacement Parts Seal Kit | MGP16-Z-PS | Grease Pack | GR-S-010 |
MGPL16-20Z-XC6A Datasheet & Manual
Download Datasheet & ManualSMC MGPL1620ZXC6A · PDF · Official SMC documentTrusted by
