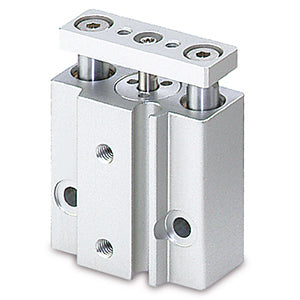

SMC MGJ105 (MGJ10-5) - Miniature Guide Rod Cylinder, 10 mm Bore, 5 mm Stroke

SMC MGJ105 Miniature Guide Rod Cylinder — 10 mm bore with the shortest 5 mm stroke in the MGJ10 family. Miniature guide rod cylinder, bore size 10 mm, standard stroke 5 mm, without auto switch, 2 pcs. or none number of auto switches, standard (non made-to-order) specification, non-rotating accuracy ±0.1°, integral wiring and piping to one direction, two auto switches can be mounted even for this 5 mm stroke.

MPN: MGJ10-5 · SKU: MGJ105

MGJ10-5 Applications

The SMC MGJ105 is used in dense electronics assembly, semiconductor and medical device machinery where only a few millimetres of guided travel are available. It is suited for short-stroke clamping and part hold-down, for fine nozzle or probe advance, and for pressing and stamping small components at close pitch. Its 5 mm stroke is the shortest in the MGJ10 family, making it the most compact option where the MGJ10-10 or MGJ10-20 would not fit. Even at this stroke two auto switches can still be mounted for end-position sensing, and non-rotating accuracy of ±0.1° keeps small tooling correctly oriented.
