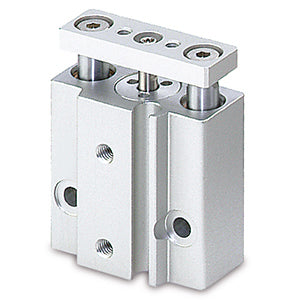

SMC MGJ1020 (MGJ10-20) - Miniature Guide Rod Cylinder, 10 mm Bore, 20 mm Stroke

SMC MGJ1020 Miniature Guide Rod Cylinder — 10 mm bore with the longest 20 mm stroke in the MGJ10 family. Miniature guide rod cylinder, bore size 10 mm, standard stroke 20 mm, without auto switch, 2 pcs. or none number of auto switches, standard (non made-to-order) specification, non-rotating accuracy ±0.1°, integral wiring and piping to one direction, two auto switches can be mounted even for 5 strokes.

MPN: MGJ10-20 · SKU: MGJ1020

MGJ10-20 Applications

The SMC MGJ1020 is used in compact electronics assembly, semiconductor handling, laboratory instruments and benchtop automation that needs the longest reach in the miniature guide rod range. It is suited for lifting and lowering small trays, for advancing grippers or nozzles clear of a fixture, and for transferring tiny parts between adjacent stations. Its 20 mm stroke is double the MGJ10-10 and four times the MGJ10-5, giving maximum travel where the 10 mm bore still fits the available space. Non-rotating accuracy of ±0.1° keeps tooling square and integral wiring and piping to one direction simplifies routing.
