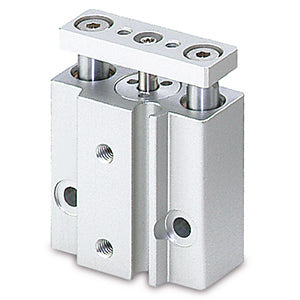

SMC MGJ1010 (MGJ10-10) - Miniature Guide Rod Cylinder, 10 mm Bore, 10 mm Stroke

SMC MGJ1010 Miniature Guide Rod Cylinder — 10 mm bore with the mid-range 10 mm stroke. Miniature guide rod cylinder, bore size 10 mm, standard stroke 10 mm, without auto switch, 2 pcs. or none number of auto switches, standard (non made-to-order) specification, non-rotating accuracy ±0.1°, integral wiring and piping to one direction, two auto switches can be mounted even for 5 strokes.

MPN: MGJ10-10 · SKU: MGJ1010

MGJ10-10 Applications

The SMC MGJ1010 is used in compact electronics assembly, semiconductor handling, small-part testing and benchtop automation where space is extremely tight. It is suited for short clamping and lifting moves, for advancing small nozzles, probes or grippers, and for indexing tiny workpieces where a guided, non-rotating motion is essential. With a 10 mm bore and a 10 mm stroke it sits mid-range in the MGJ10 family, giving more travel than the 5 mm version while staying shorter than the 20 mm. Non-rotating accuracy of ±0.1° and integral wiring and piping to one direction simplify machine layout.

MGJ10-10 Specifications
