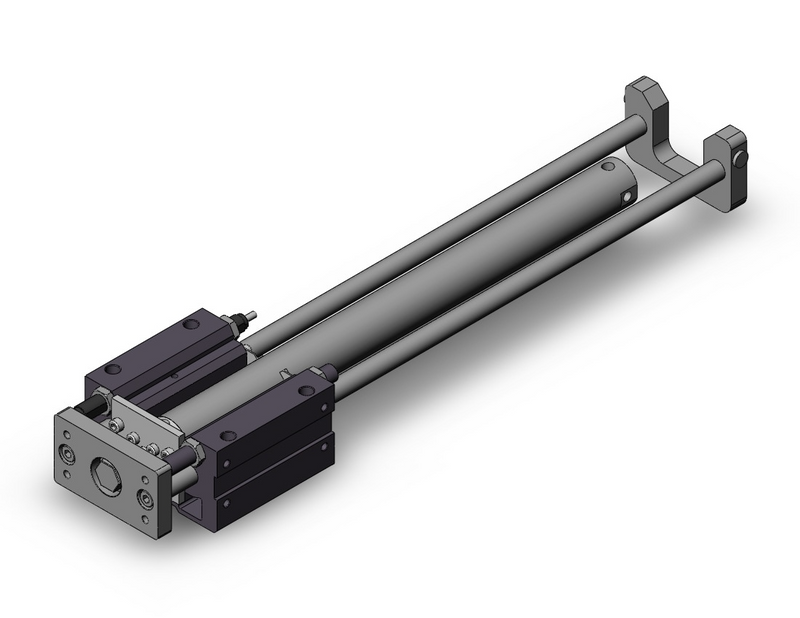

SMC MGGMB32400 (MGGMB32-400) - Guide Cylinder, 32 mm Bore, 400 mm Stroke

SMC MGGMB32400 Guide Cylinder — slide bearing with basic style mounting, 32 mm bore and 400 mm stroke. Guide cylinder with integrated guide rods in a compact configuration, bearing type M slide bearing, mounting style B basic style, bore size 32 mm, standard stroke 400 mm, Rc port thread type, without auto switch, no stroke adjustment and no auto switch mounting bracket, standard (non made-to-order) specification, providing lateral load resistance and high non-rotating accuracy as a linear transfer unit.

MPN: MGGMB32-400 · SKU: MGGMB32400

MGGMB32-400 Applications

The SMC MGGMB32400 is used in material handling, packaging, machine tool loading and general factory automation where a cylinder must resist side load and hold accurate alignment. It is suited for pushing and lifting jigs or pallets, for stopping and transferring parts on conveyors, and for driving tooling that would otherwise deflect a plain rod cylinder. Integrated guide rods give lateral load resistance and high non-rotating accuracy in a compact envelope, while the 400 mm stroke and 32 mm bore suit medium-duty long-travel transfer. Slide bearings suit lower-speed, higher-load duty.

MGGMB32-400 Specifications
